KMP BMW F8X Tripod Joint Driveshafts

By KMP Drivetrain
From £1,750.00
Worldwide Shipping
Official Dealer
View details

Product Description

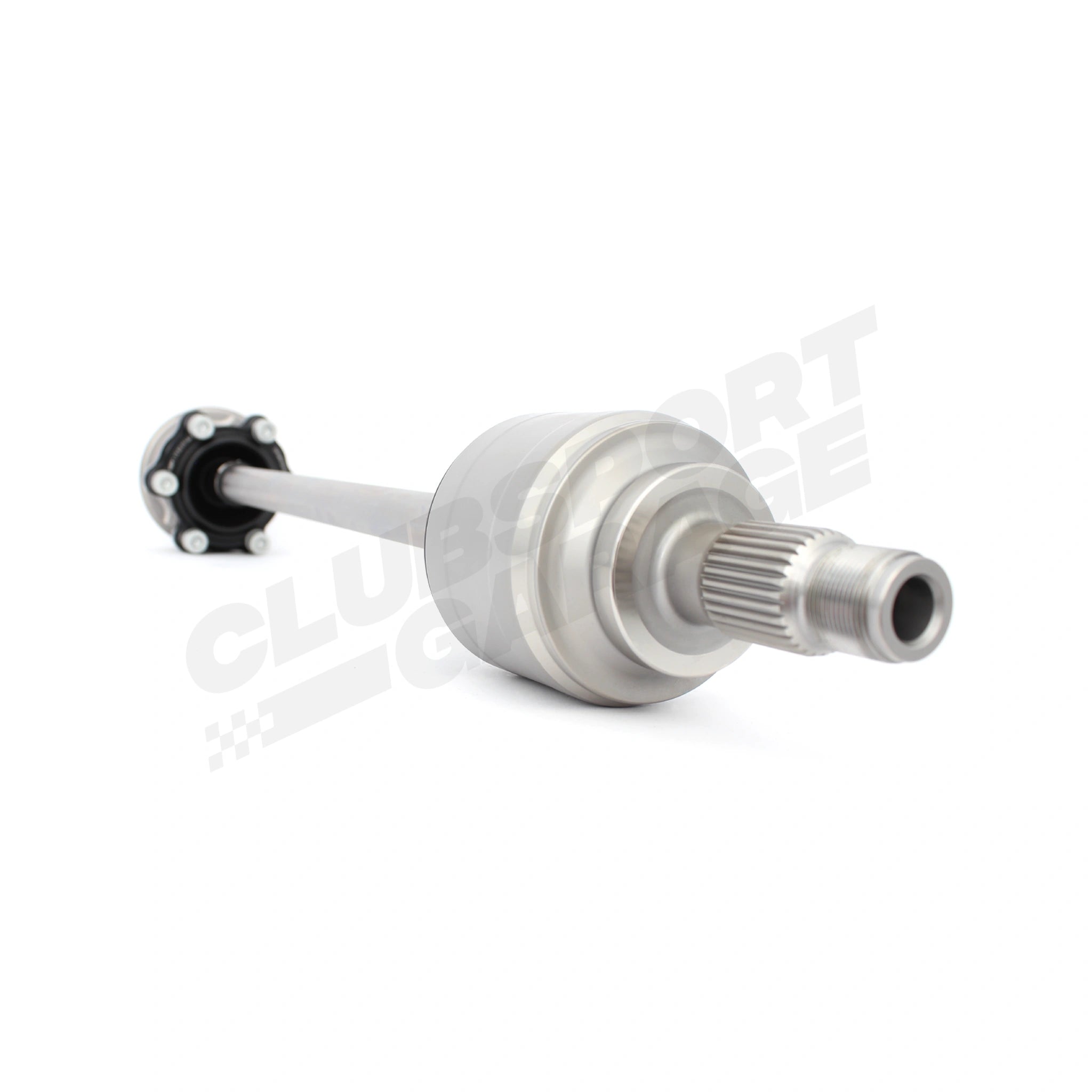

The KMP Tripod Joint Driveshafts are a motorsport-focused driveshaft upgrade for compatible BMW F8X M platforms, including the BMW F80 M3, F82 M4, F83 M4 Convertible, F87 M2 and F87 M2 Competition. Designed for track use, endurance racing and high-power builds, they replace the factory CV-joint design with a high-efficiency tripod joint system.

The tripod joint design provides efficient torque transfer with reduced internal friction, helping deliver smoother and more consistent power transmission during sustained high-load use. The compact, lightweight construction also helps reduce rotating mass, making these driveshafts well suited to high-grip, aerodynamic and tuned BMW M builds.

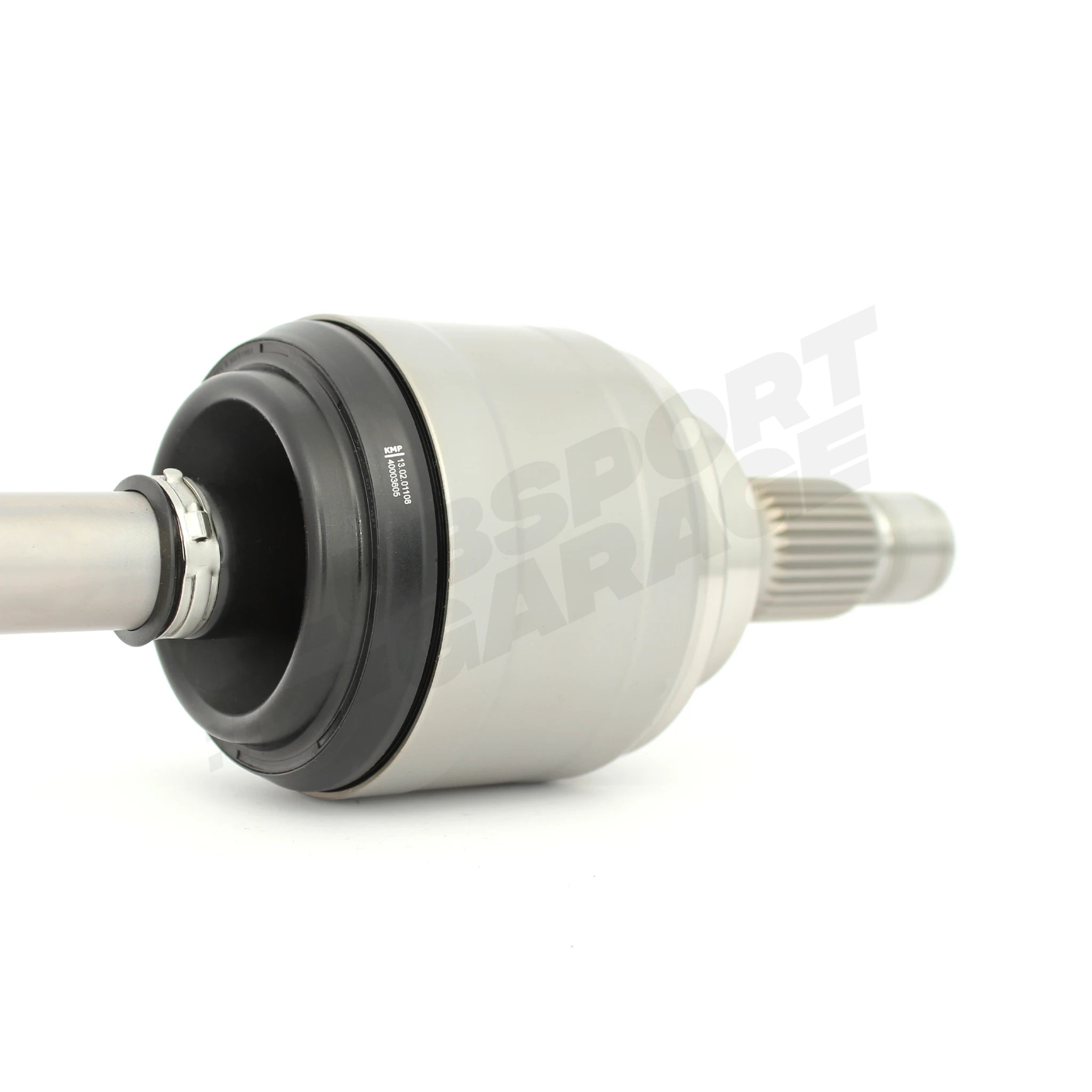

Unlike sealed CV joints, the KMP tripod joints are fully serviceable, allowing them to be disassembled, inspected and maintained as part of a motorsport running schedule. Needle-bearing tripod rollers help reduce friction and heat generation, supporting durability and reliability during demanding track and endurance use.

These driveshafts are particularly suited to rear-wheel-drive applications, where the tripod joint operates within smaller articulation angles. Custom-length driveshafts are also available at no extra cost, with KMP able to supply a measurement shaft and spec sheet where precise fitment is required for non-standard builds.

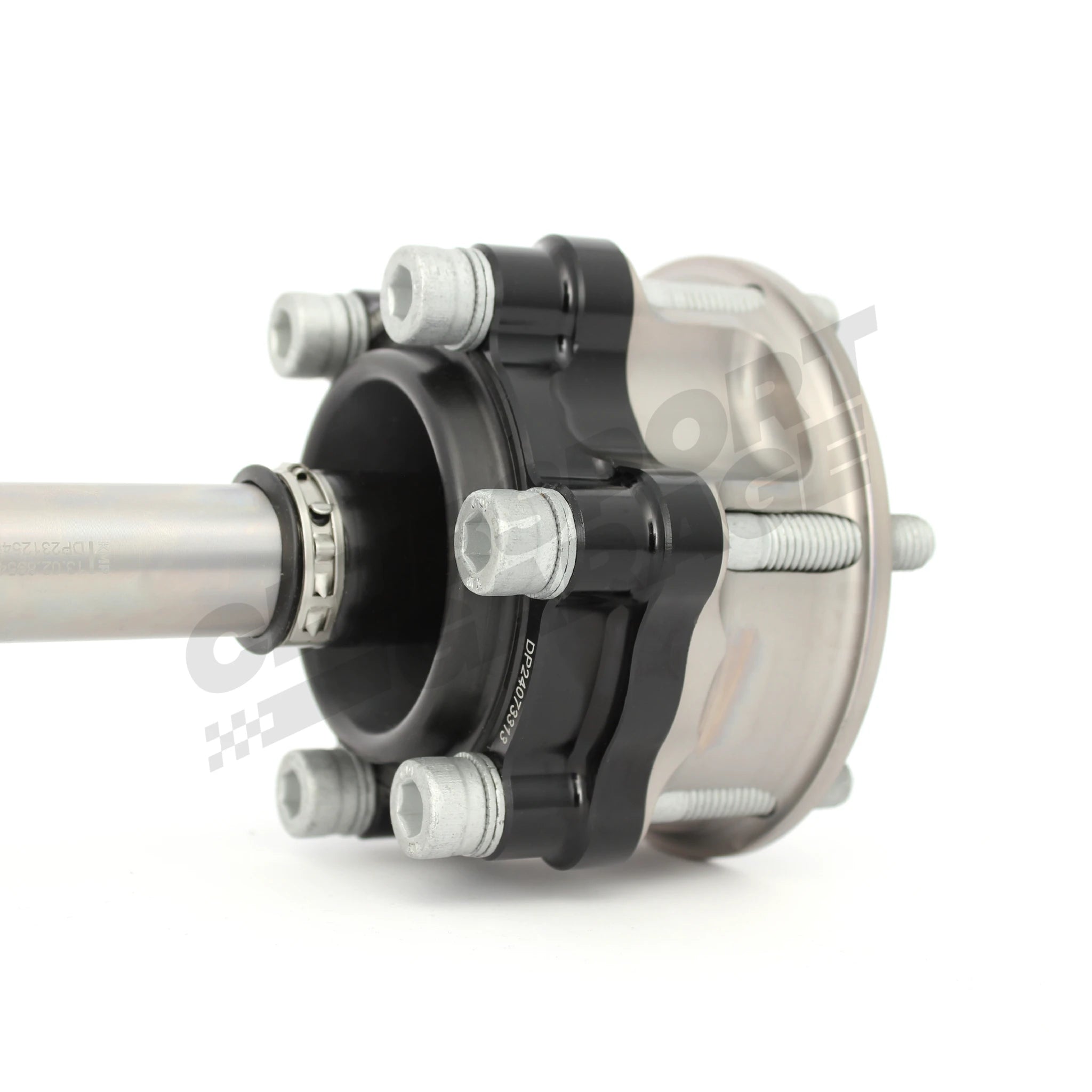

Please note: these driveshafts require KMP-specific left and right differential flanges, which are sold separately. A pair of KMP differential flanges is required for installation to ensure the correct tripod joint interface, articulation, travel and lubrication depth.

Please confirm vehicle model, differential setup, driveshaft length, flange compatibility, suspension geometry and intended use before ordering.

Further information below.

Key Features
  • KMP Tripod Joint Driveshafts for BMW F8X M applications
  • Performance driveshaft upgrade for track, endurance and high-power builds
  • Replaces the factory CV-joint design with a motorsport tripod joint system
  • Designed to improve power transfer, efficiency and long-term reliability under load
  • Suitable for BMW F80 M3, F82 M4, F83 M4 Convertible, F87 M2 and F87 M2 Competition
  • Tripod joint design supports smoother and more consistent torque transfer
  • Compact, lightweight motorsport construction helps reduce rotating mass
  • Needle-bearing tripod rollers help reduce internal friction
  • Lower friction can help reduce heat build-up during sustained track use
  • Fully serviceable design allows joints to be disassembled, inspected and maintained
  • Ideal for rear-wheel-drive applications with smaller articulation angles
  • Well suited to high-grip, aerodynamic and tuned F8X platforms
  • Custom-length driveshafts available at no extra cost
  • Measurement shaft and spec sheet available for non-standard builds where precise measurements are required
  • Requires KMP-specific left and right differential flanges, sold separately
  • A pair of KMP differential flanges is required for installation
  • Designed for motorsport-grade reliability under sustained heat and load

Vehicle Compatibility
  • BMW F80 M3
  • BMW F82 M4
  • BMW F83 M4 Convertible
  • BMW F87 M2
  • BMW F87 M2 Competition
  • Suitable for Competition, CS and GTS variants where applicable.
  • Designed for compatible rear-wheel-drive BMW F8X M platforms requiring a motorsport tripod joint driveshaft upgrade.
  • Requires KMP-specific left and right differential flanges, sold separately.
  • A pair of KMP differential flanges is required for installation.
  • Custom-length driveshafts are available at no extra cost for non-standard builds.
  • Please check vehicle model, differential setup, driveshaft length, flange compatibility, suspension geometry and intended use before ordering.

What's Included
  • KMP Tripod Joint Driveshafts
  • Motorsport tripod joint assemblies
  • Lightweight driveshaft construction
  • Serviceable joint design
  • Custom-length driveshaft option available at no extra cost
  • Measurement shaft and spec sheet available for non-standard builds, where required
  • KMP-specific differential flanges are not included
  • A pair of KMP left and right differential flanges is required and sold separately

FAQs

What are KMP Tripod Joint Driveshafts designed for?

KMP Tripod Joint Driveshafts are designed for track cars, endurance builds and high-power BMW F8X M platforms requiring improved power transfer, durability and serviceability.

How do these differ from factory driveshafts?

They replace the factory CV-joint design with a motorsport tripod joint system, which can provide more efficient torque transfer, reduced friction and improved reliability under sustained load.

Which vehicles are these driveshafts compatible with?

They are suitable for BMW F80 M3, BMW F82 M4, BMW F83 M4 Convertible, BMW F87 M2 and BMW F87 M2 Competition applications, including Competition, CS and GTS variants where applicable.

Are these suitable for endurance racing?

Yes. They are engineered for track use, endurance racing and demanding high-load applications.

Are the tripod joints serviceable?

Yes. Unlike sealed CV joints, the tripod joints can be disassembled, inspected and serviced.

Why use a tripod joint design?

Tripod joints offer efficient torque transfer, reduced internal friction and lower heat generation, making them well suited to motorsport use on rear-wheel-drive applications with smaller articulation angles.

Are custom lengths available?

Yes. KMP offers custom-length driveshafts at no extra cost.

How do I measure for a custom-length setup?

If precise measurements are required, KMP can supply a measurement shaft and spec sheet to help ensure an accurate fit for non-standard builds.

Are differential flanges required?

Yes. These driveshafts require KMP-specific left and right differential flanges.

Are the KMP differential flanges included?

No. The KMP differential flanges are sold separately, and a pair is required for installation.

What should I check before ordering?

Please confirm vehicle model, differential setup, driveshaft length, flange compatibility, suspension geometry and intended use before ordering.
