Nitron NTR R3 Coilovers – BMW F87 M2 Competition / CS (2018–2021)

Ultimate Suspension Control for Road and Track

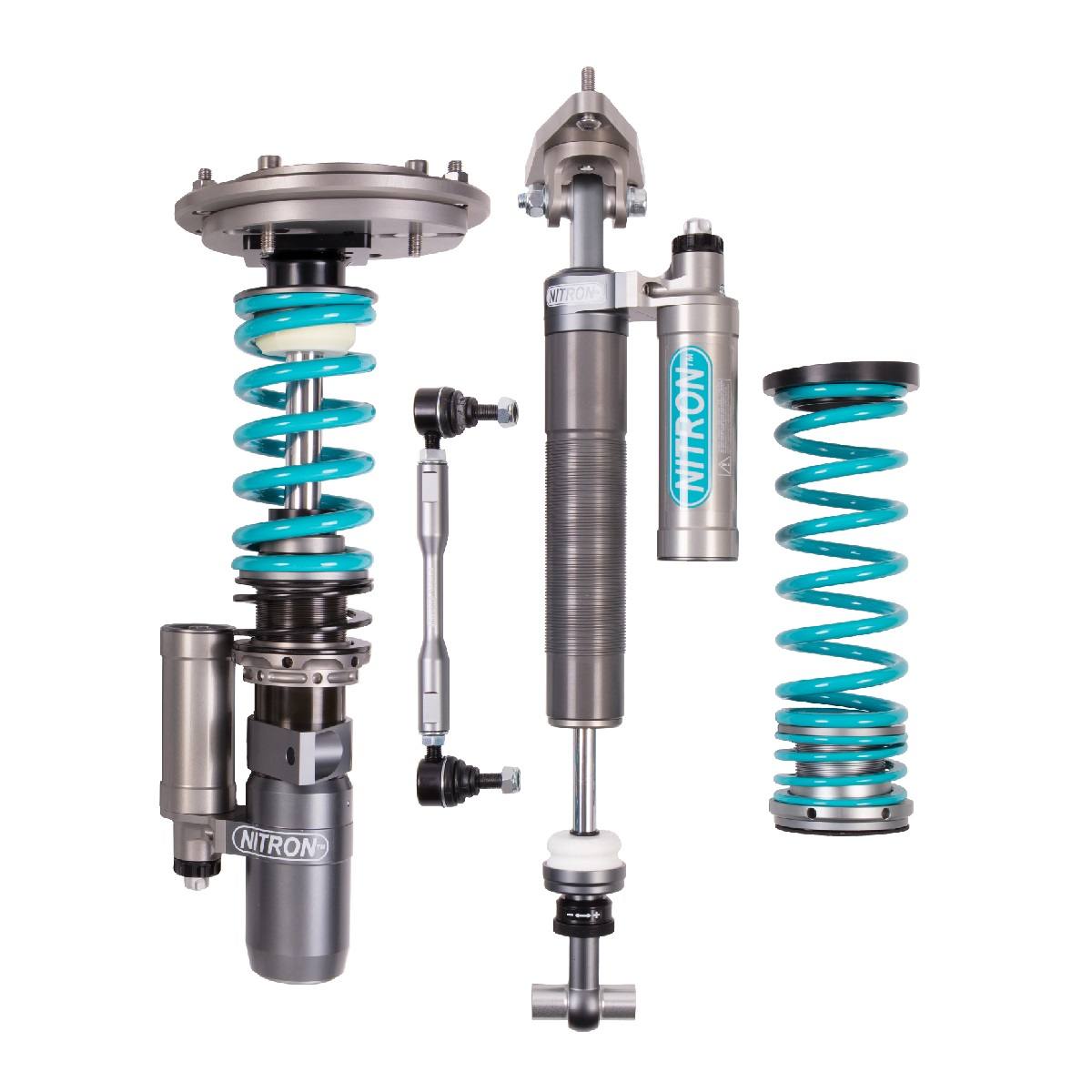

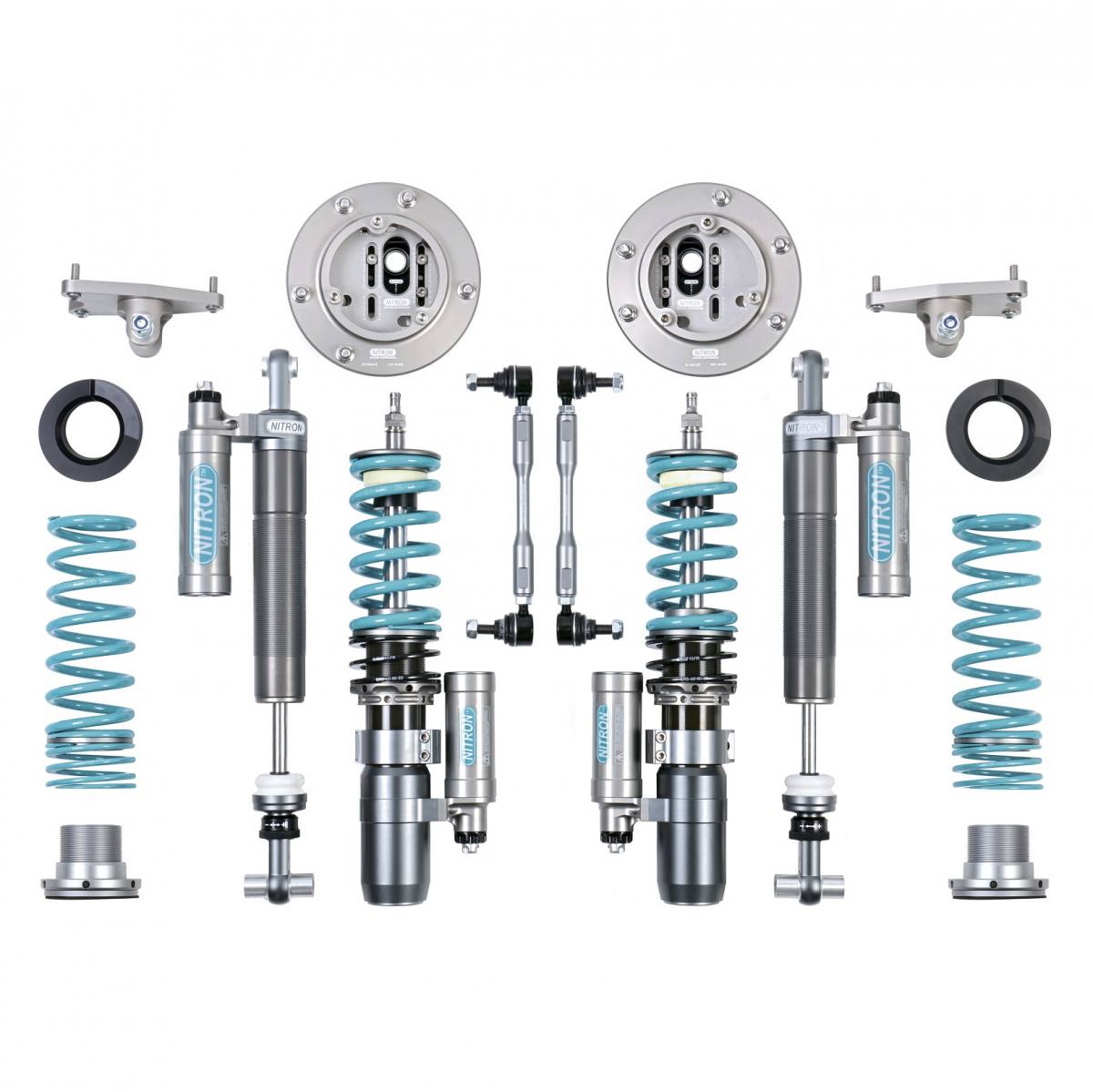

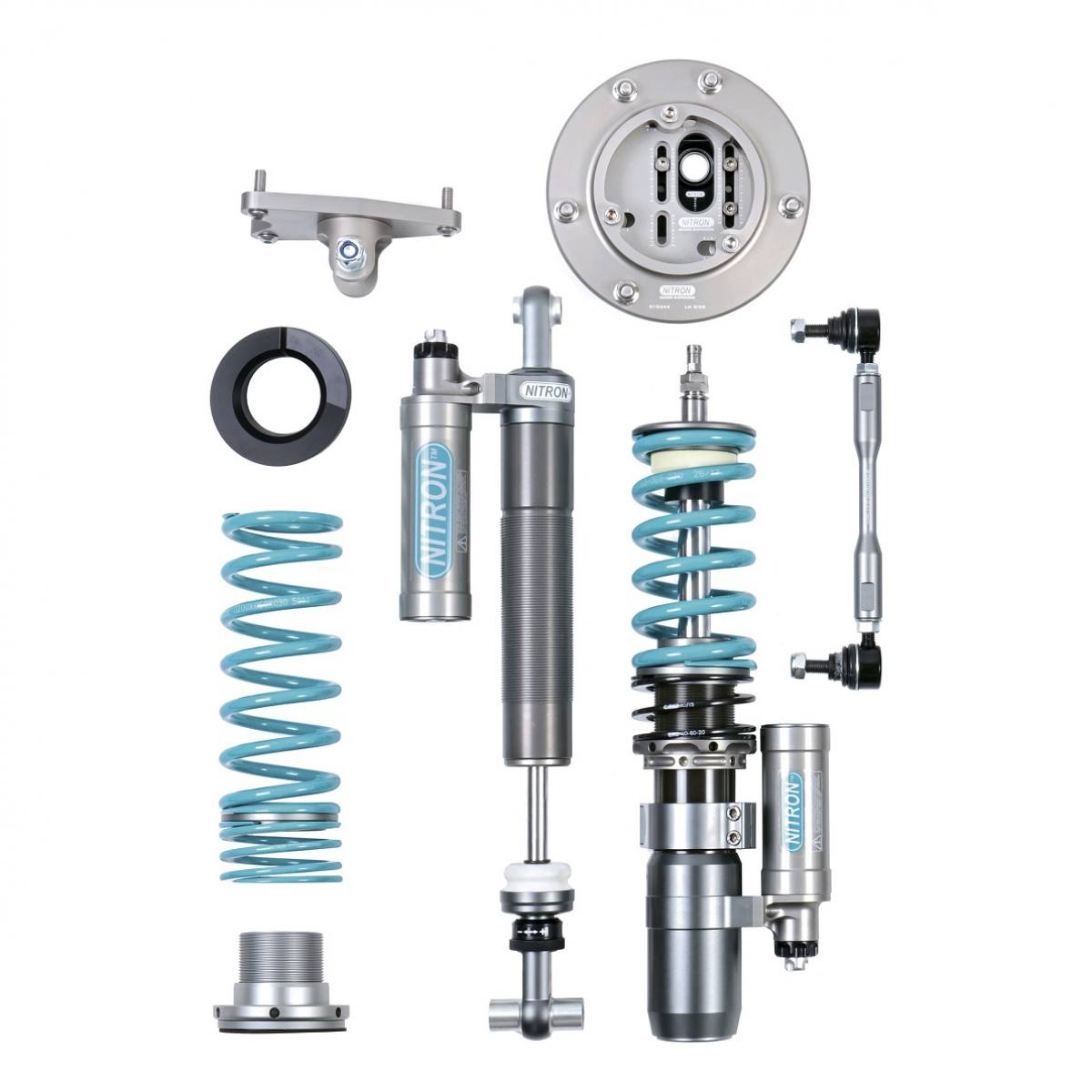

The Nitron NTR R3 Coilover Kit is a motorsport-developed suspension system engineered for drivers who demand precise damping control, durability, and adjustability from their M2.

Compatibility:
This kit is designed for the BMW F87 M2 Competition and M2 CS, produced from 2018–2021.

The R3 system offers 3-way independent damping adjustment – allowing separate control of rebound, fast compression, and slow compression for professional-grade handling response.

Key Features of the Nitron NTR R3 Kit

• 3-way independent damping adjustment

• Separate control of rebound, fast compression & slow compression

• External piggyback or remote reservoir configuration

• Large-diameter piston for consistent, fade-free damping

• True or Divorced rear spring configuration

• Compatibility: BMW F87 M2 Competition / CS (2018–2021)

• Bi-Axis hose fittings on remote reservoir kits

• Fully serviceable and rebuildable

• Titanium and hard-anodised components for maximum longevity

• Built to order in the UK

Spring Rate Options – Tuned by Nitron for the F87 M2

These spring rates have been specifically developed for the M2 Competition and CS to deliver maximum grip, control, and composure across both fast road and track environments.

Fast Road Setup

Designed to offer excellent chassis response and comfort on the road, with the flexibility for occasional track use.

• Front: 120 N/mm

• Rear (Divorced): 130 N/mm

• Rear (True Coilover): 70 N/mm

Track Setup

Stiffer rates to suit advanced driving, offering reduced roll and increased chassis stability under high loads.

• Front: 140 N/mm

• Rear (Divorced): 160 N/mm

• Rear (True Coilover): 90 N/mm

  True rear spring rates appear lower due to different mounting ratios and spring positions – overall stiffness is comparable.

Custom Options Available

Custom spring rates, lengths, and damper lengths can be specified. If you have unique setup needs, contact us before ordering and we’ll tailor your kit accordingly.

Optional Quick-Connect Dry Break Fittings (+£895)

For serious users, Nitron offer an upgrade to quick-connect dry break fittings that allow remote reservoirs to be relocated into the cabin or engine bay without fluid loss.

Benefits include:

• Fast and easy access for fine-tuning

• Protection from heat and debris

• Neater, motorsport-style installation

• Better thermal isolation for consistent damping

  Ideal for competition use or trackday cars requiring frequent adjustments. Contact us to include this option.

Race-Grade Construction and Materials

Nitron's R3 system uses a large-diameter piston, high-pressure nitrogen chamber, and monotube design for accurate, fade-resistant damping performance — ideal for endurance racing, hot-lapping, or repeated circuit use.

Constructed from corrosion-resistant alloys with hard-anodised and titanium finishes, the R3 is built to withstand aggressive conditions while remaining lightweight.

Bi-Axis Hose Fittings (Remote Reservoir Kits Only)

All remote reservoir kits are fitted with Nitron’s Bi-Axis hose fittings, making installation easier and more adaptable to engine bay or interior layouts.

Built to Order – Ready for Your Build

Every NTR R3 kit is hand-built in the UK to your specification. Lead time is typically 2–3 weeks. For an accurate ETA, contact us and we’ll check directly with Nitron.

Why Buy from Clubsport Garage?

We’re an authorised Nitron dealer with deep platform knowledge of the BMW M2 Competition and CS, and we’re here to support your build before and after purchase.

• First-hand F87 platform experience

• Setup guidance tailored to your goals

• Fast, insured UK and worldwide shipping

• Enthusiast-run, customer-focused service

Have questions before ordering? Get in touch – we’re happy to help.
