do88 Charge Cooler Inlet Manifold BMW F Series B58 Gen 1
Product Description
What Makes This Intake Upgrade Exceptional

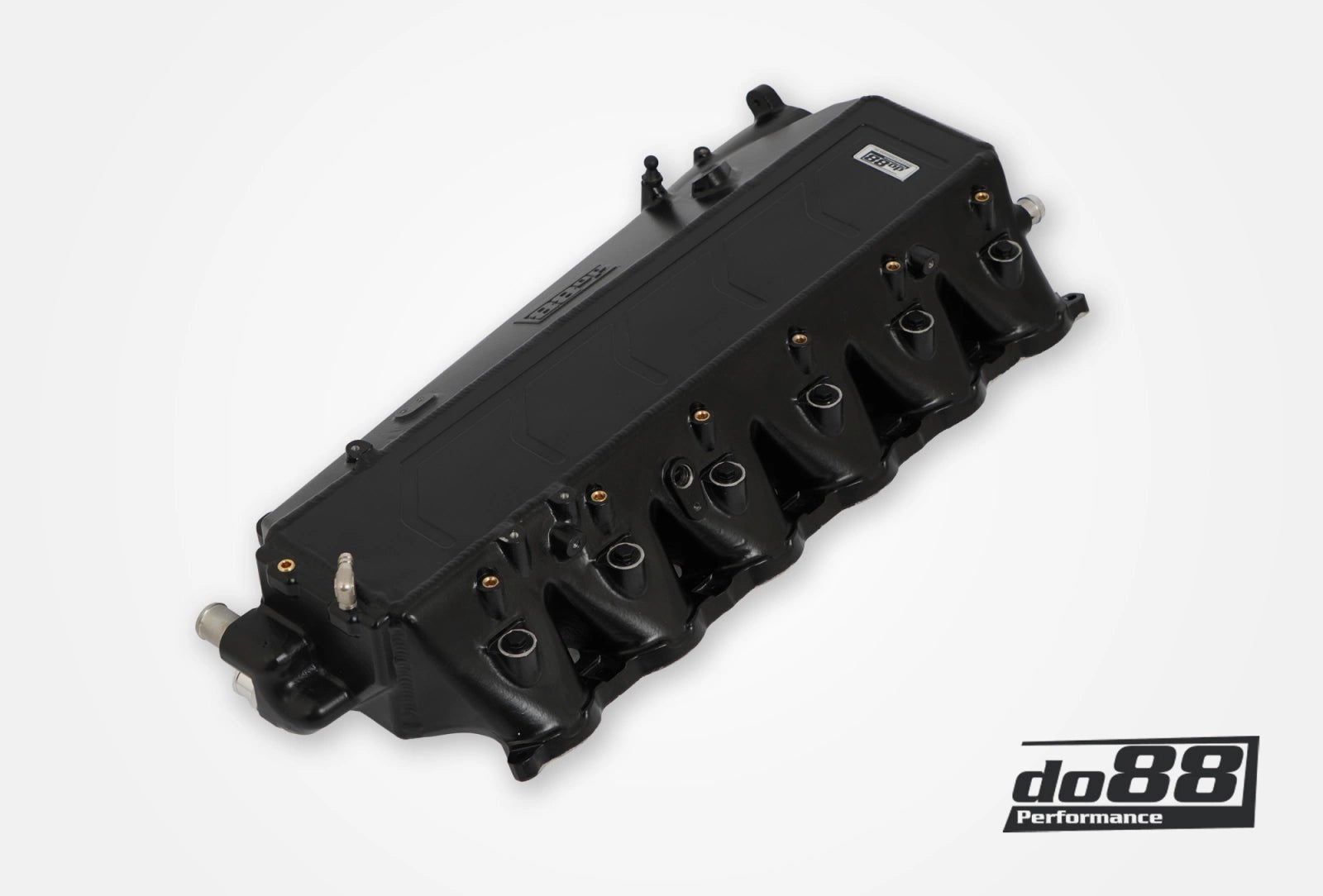

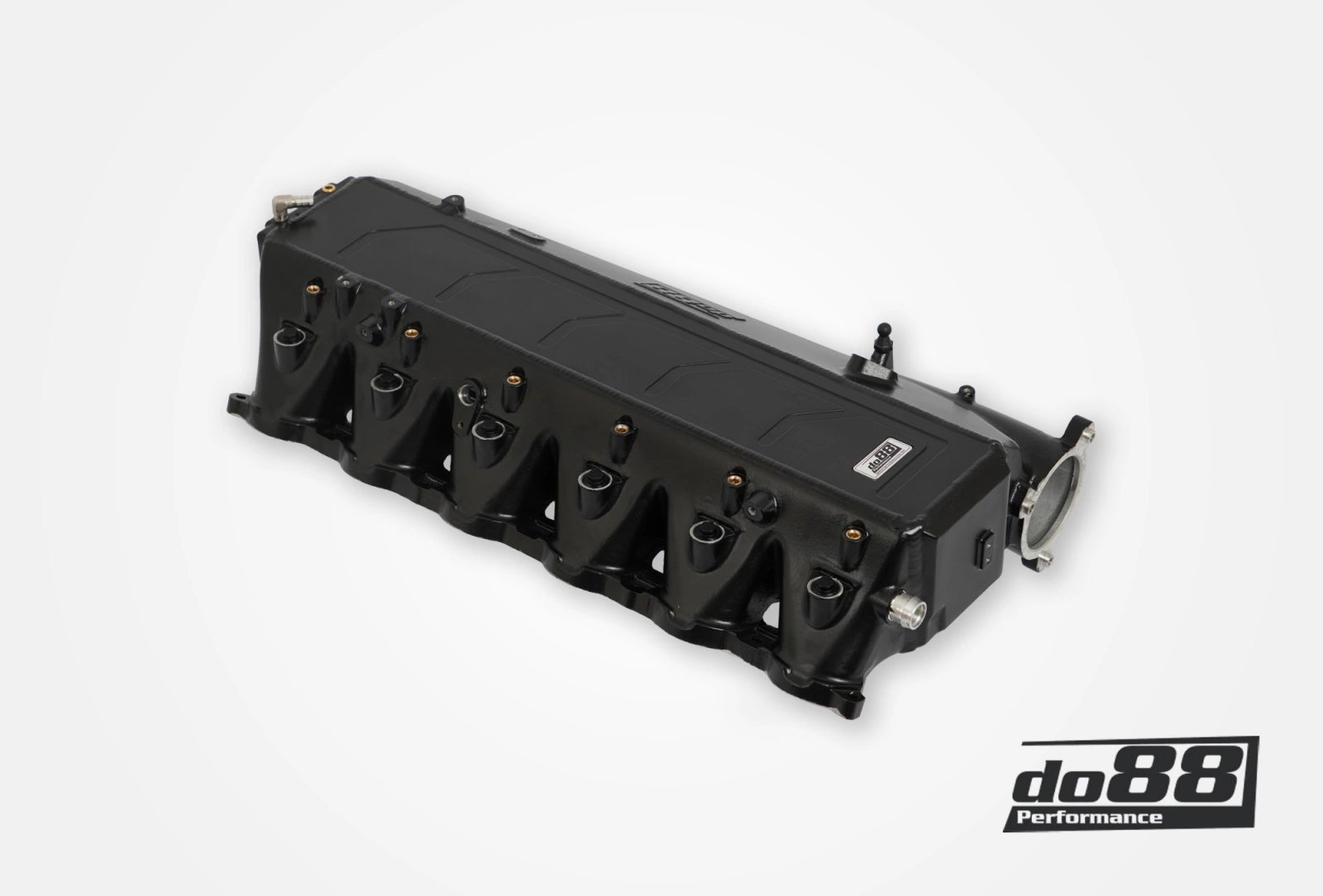

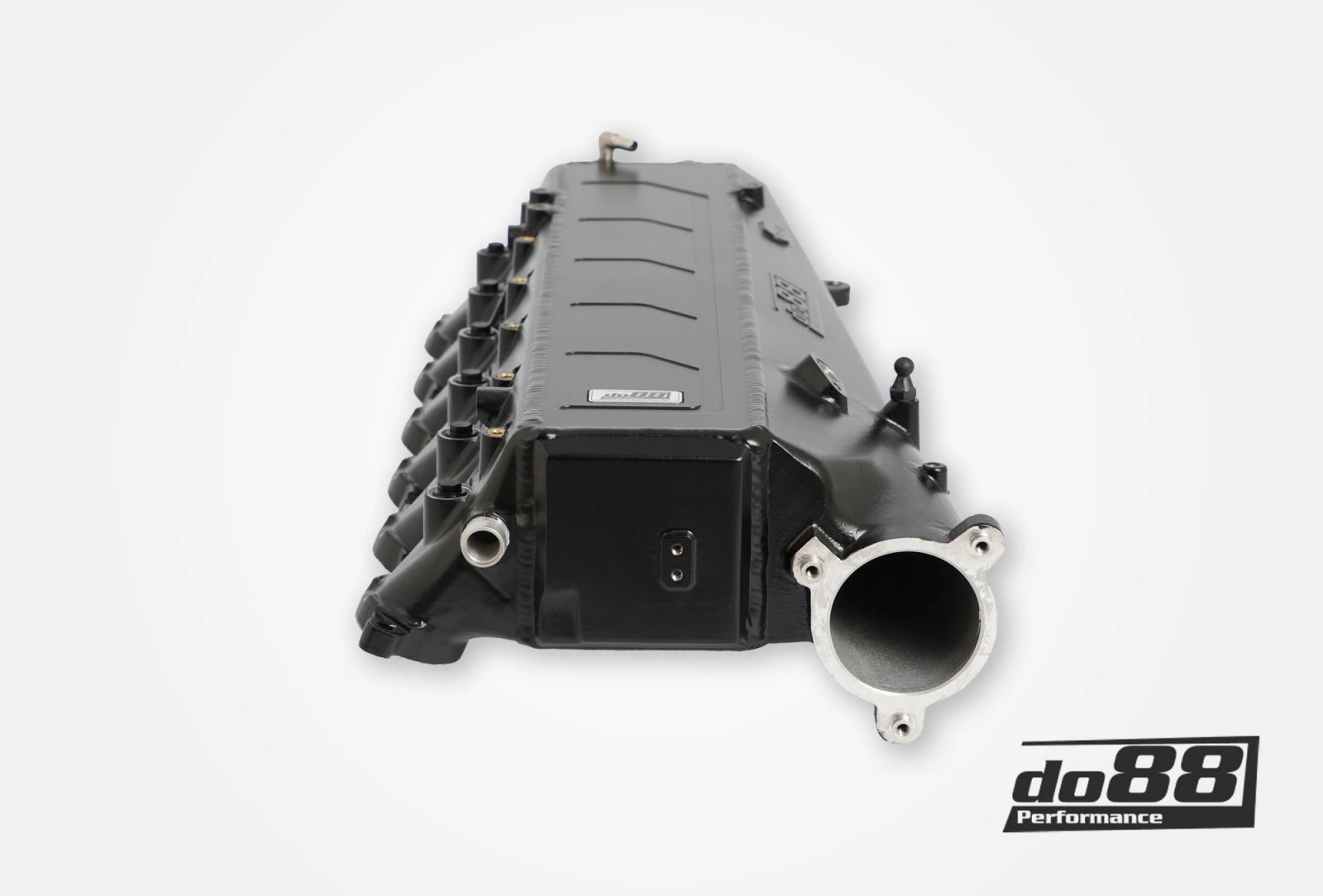

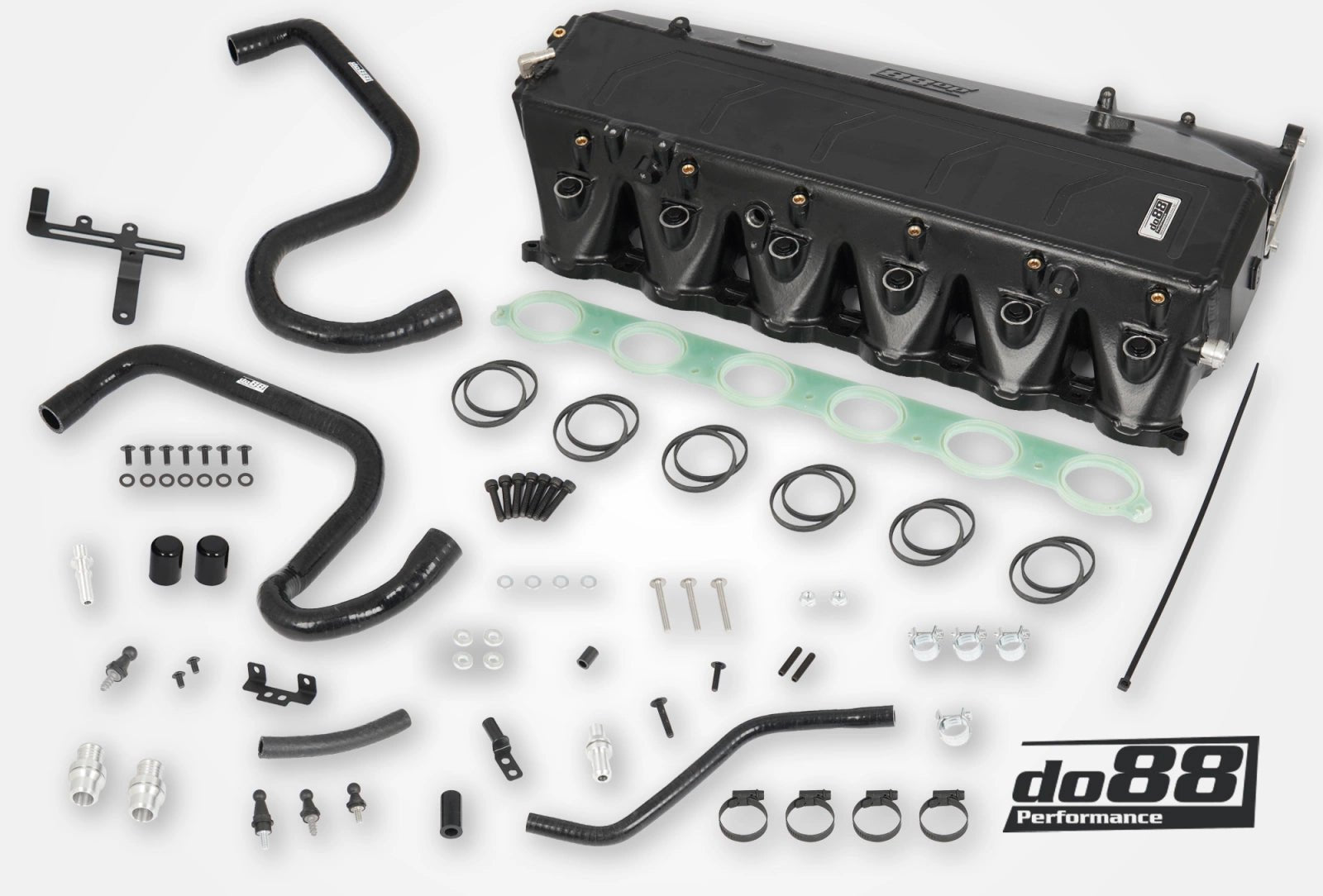

The do88 Charge Cooler Manifold replaces your factory B58 intake manifold with a fully integrated bar‑and‑plate air‑to‑water intercooler. The precision-machined aluminium unit delivers major gains in airflow, thermal stability, and durability—making it the ultimate plug‑and‑play cooling upgrade for tuned F-series and G-series BMWs.
Factory Limitations Solved
-
The OEM plastic manifold restricts airflow and is prone to cracking at high boost pressures.
-
The factory water‑to‑air charge cooling system quickly heats up under track or spirited use, causing intake air temps to spike and triggering power reduction or limp modes.
-
Port fuel injectors spaced under the OEM design can lead to fuel puddling inside runners—reducing performance and efficiency.
do88’s Intelligent Engineering
-
102 mm-thick bar‑and‑plate core, increasing water cooling rows from 6 to 11 for superior heat exchange
-
Cast end tanks designed using CFD to ensure even airflow distribution
-

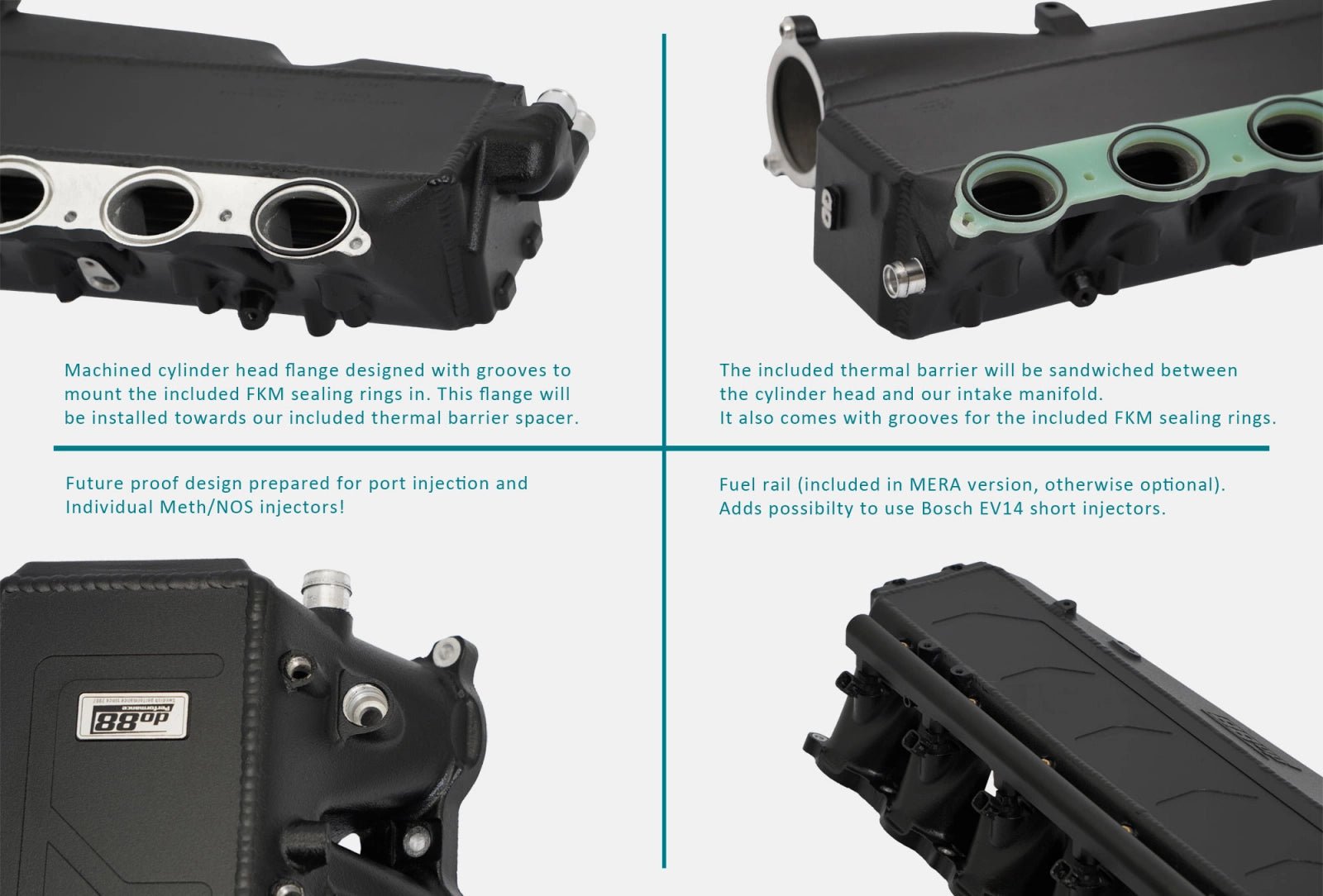

Thermal barrier spacer included—with high-spec FKM-silicone O-rings—to reduce conductive heat transfer from the cylinder head
-

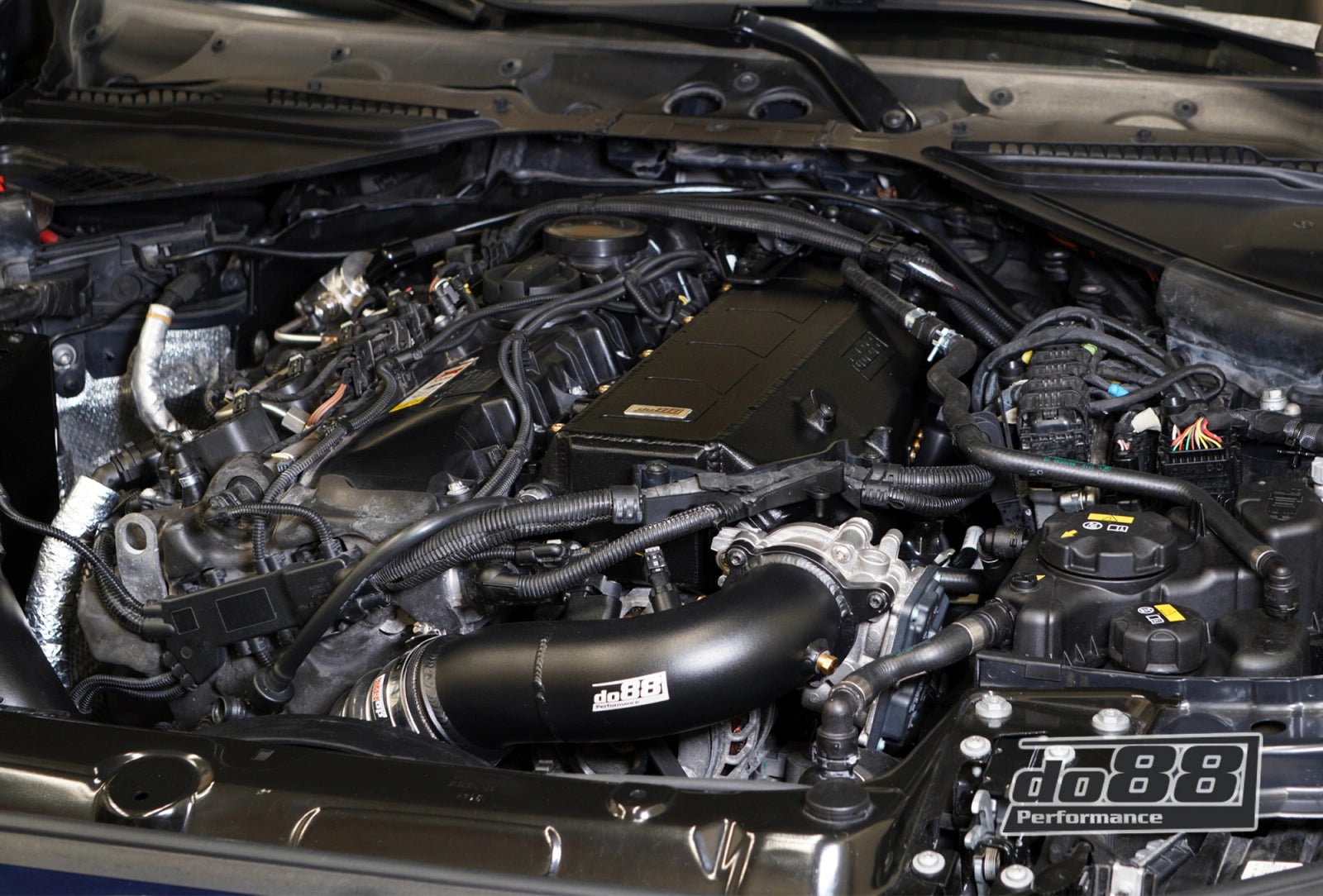

Designed to fit under the OEM engine cover with bracket support, maintaining engine bay aesthetics on F‑series BMWs such as the 340i (confirmed fit without cover mods on F30/F31)
Plug & Play with Optional Upgrades
-

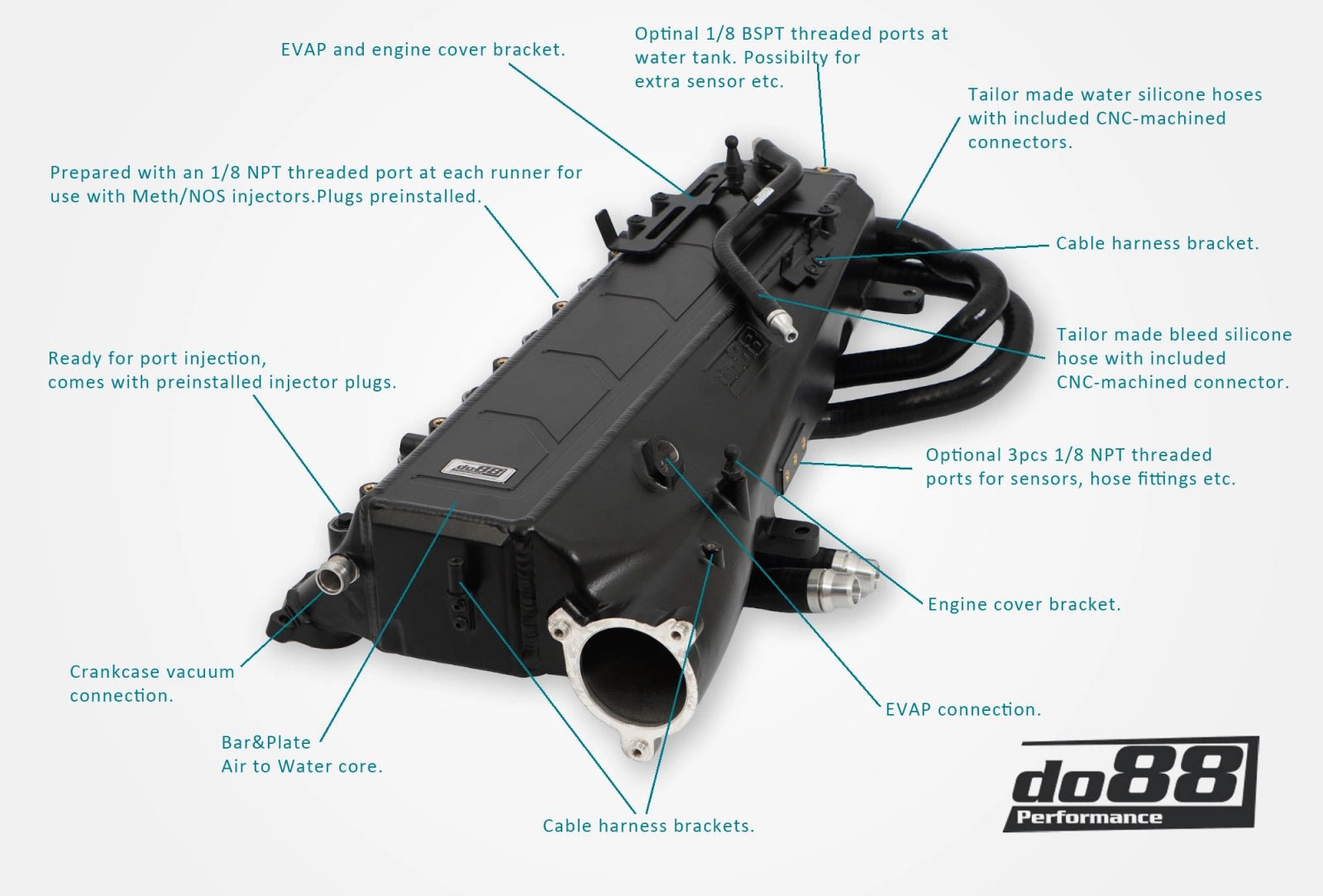

Includes integrated sensor pad with three sealed 1/8″ NPT ports (for vacuum or data logging)
-
Each cylinder runner features an individual 1/8″ NPT port—ideal for nitrous or methanol injection (plugged by default)
-
Designed for auxiliary port injection systems (bracket pre‑cut and ports pre‑threaded) compatible with Injector Dynamics ID1050x or Bosch EV14 setups
-
Exceptionally easy service access: spin‑off oil filter means no need to remove the manifold during oil changes
Performance & Cooling Gains
-

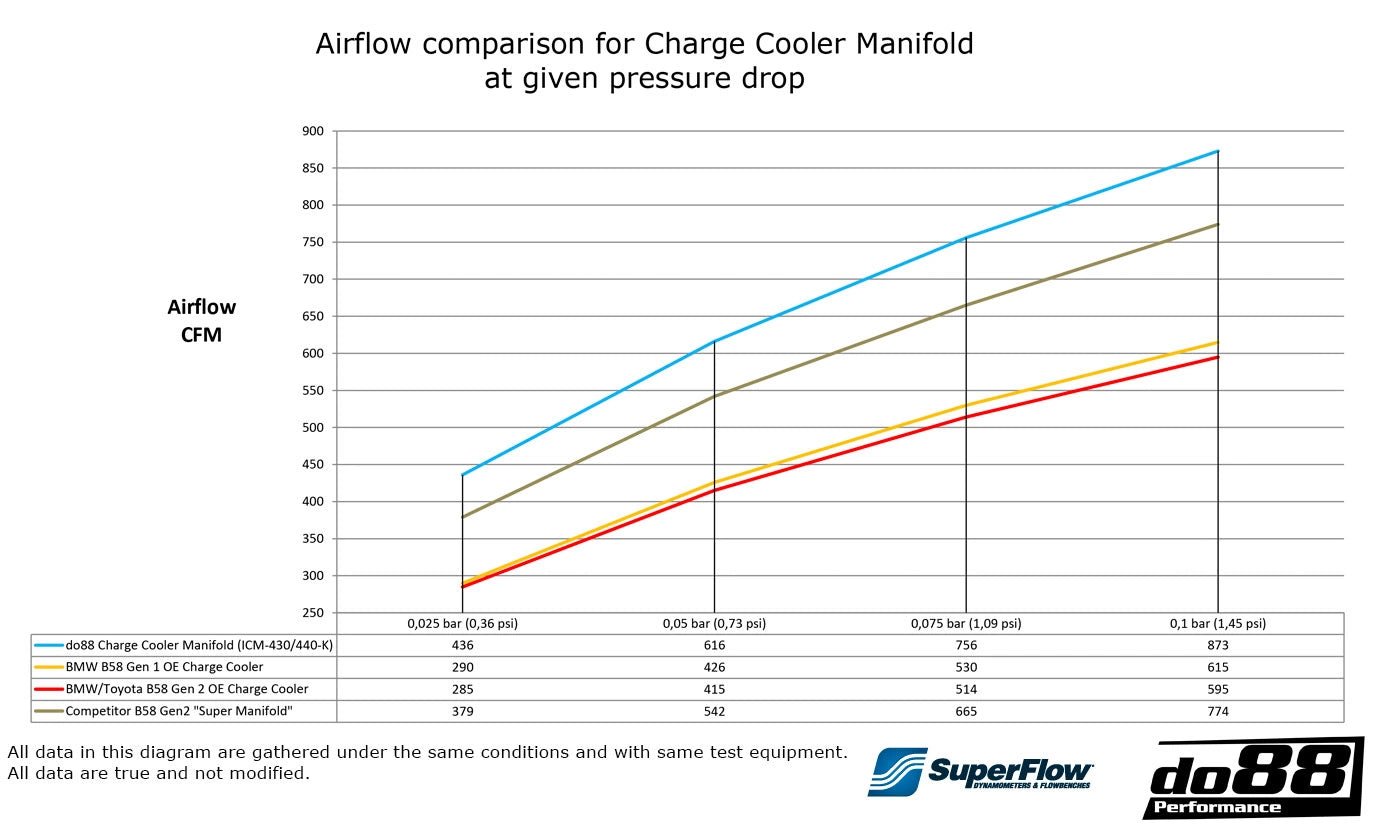

42% higher airflow than OEM: 873 CFM vs. 615 CFM at 0.1 bar pressure drop
-

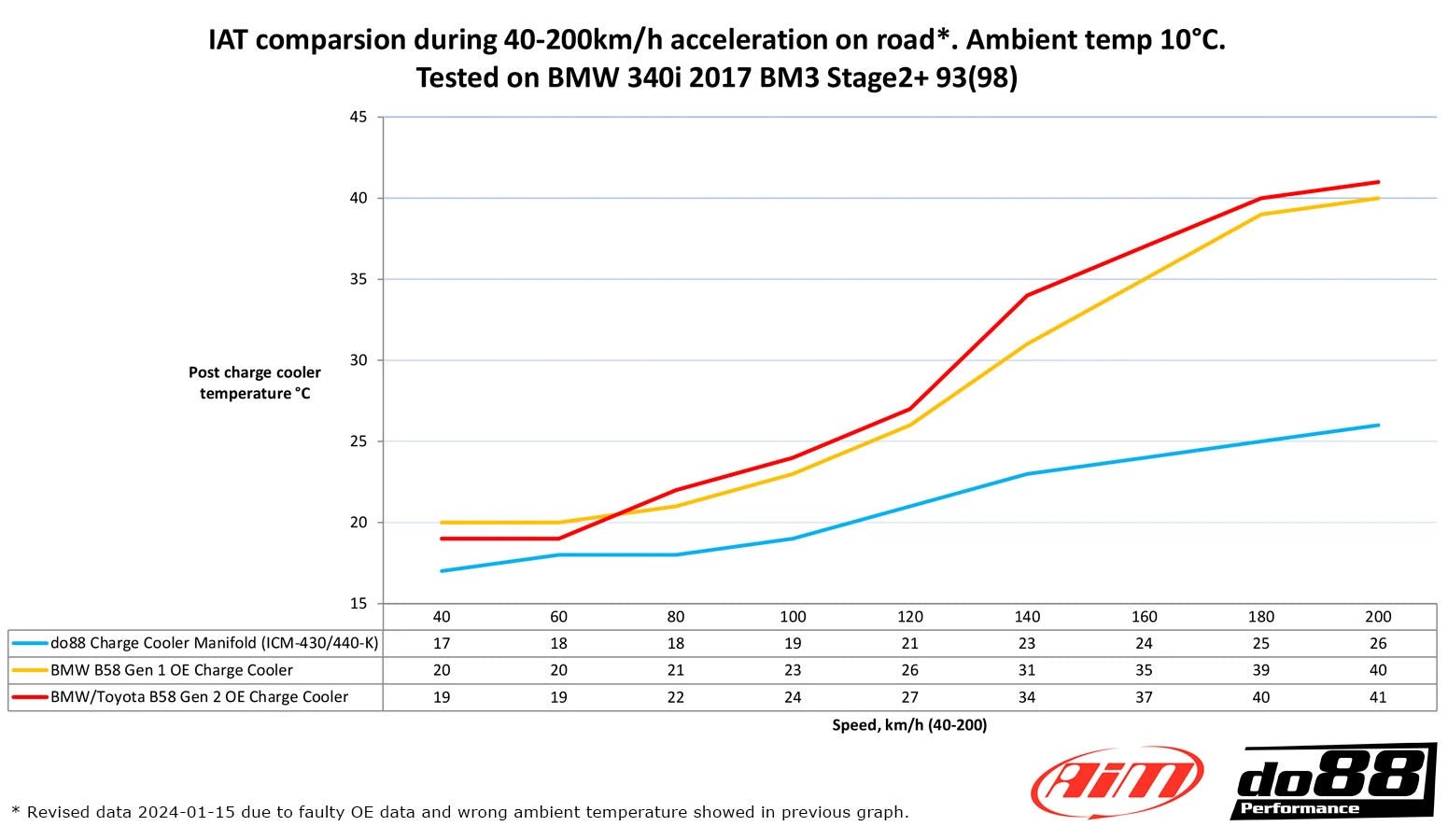

Intake temperatures reduced to ~26 °C vs. 40 °C on stock system
-

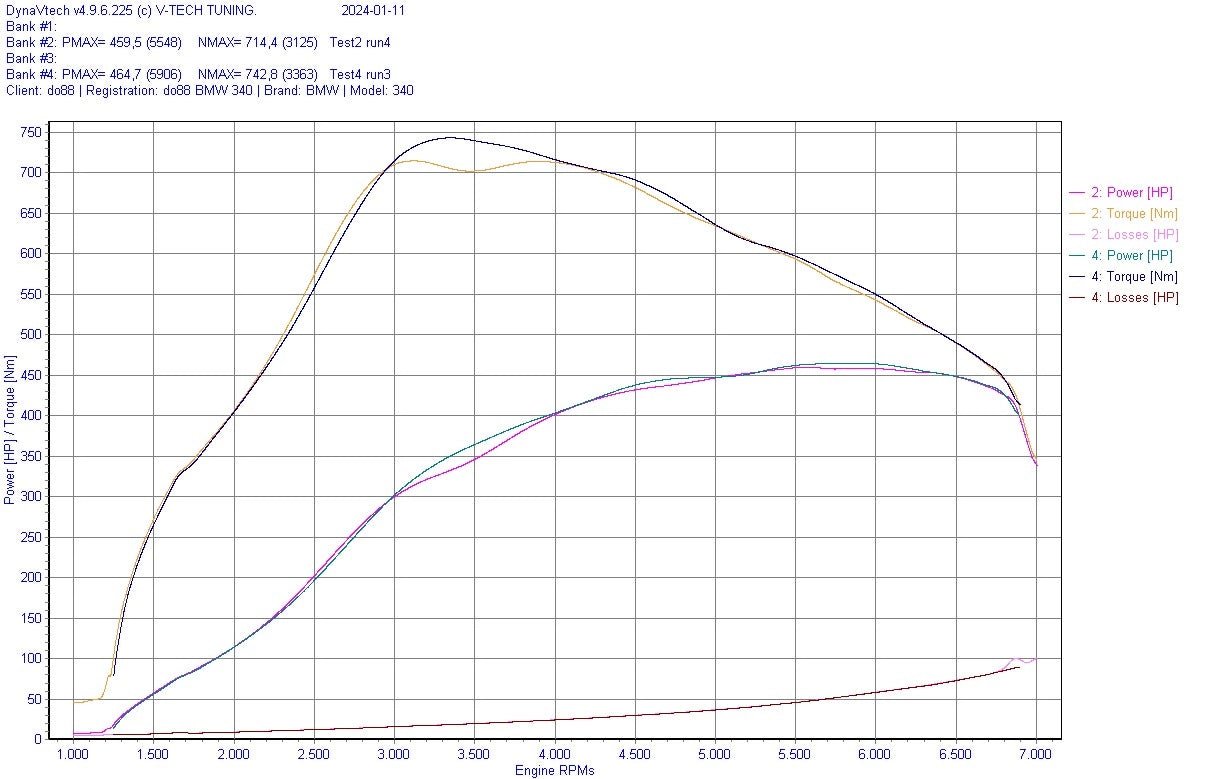

Real-world power gains: +5 hp peak (Bootmod3 Stage 2+), +18 hp midrange, +28 Nm torque increase on 340i testing
Compatibility
-
BMW 1 / 2 / 3 / 4 / 5 / 6 / 7 / X3 / X4 MkF/G with B58 Gen 1 engine
-
F20 / F21 M140i, F22 / F23 M240i, F30 / F31 340i, F32 / F36 440i, G01/G02 M40i, G30/31 540i, G32 640i, G11/12 740i etc.
-
Confirmed fit for both stock and tuned B58 variants
Why You Should Upgrade
-
Eliminates heat soak and limp-mode risk on track
-
Robust aluminium construction avoids cracking under boost
-
Compatible with port fuel & meth/nos injection setups
-
Keeps the original engine cover fitment intact
-
Better airflow, lower IATs, and reliable power gains session after session
