KMP Clubsport Nürburgring Steering Wheel – BMW F8x M3 / M4 and F87 M2

Regular priceFrom £1,750.00
Worldwide Shipping
Official Dealer

A CLOSER LOOK PRODUCT DETAILS

THE DETAILS MAKE THE DIFFERENCE.

Explore the product information, key features and compatibility notes below. Unsure about a specification? Get in touch before ordering.

01 / BRANDKMP Drivetrain
02 / CATEGORYSteering Wheels
03 / NEED ADVICE?CONTACT THE TEAM

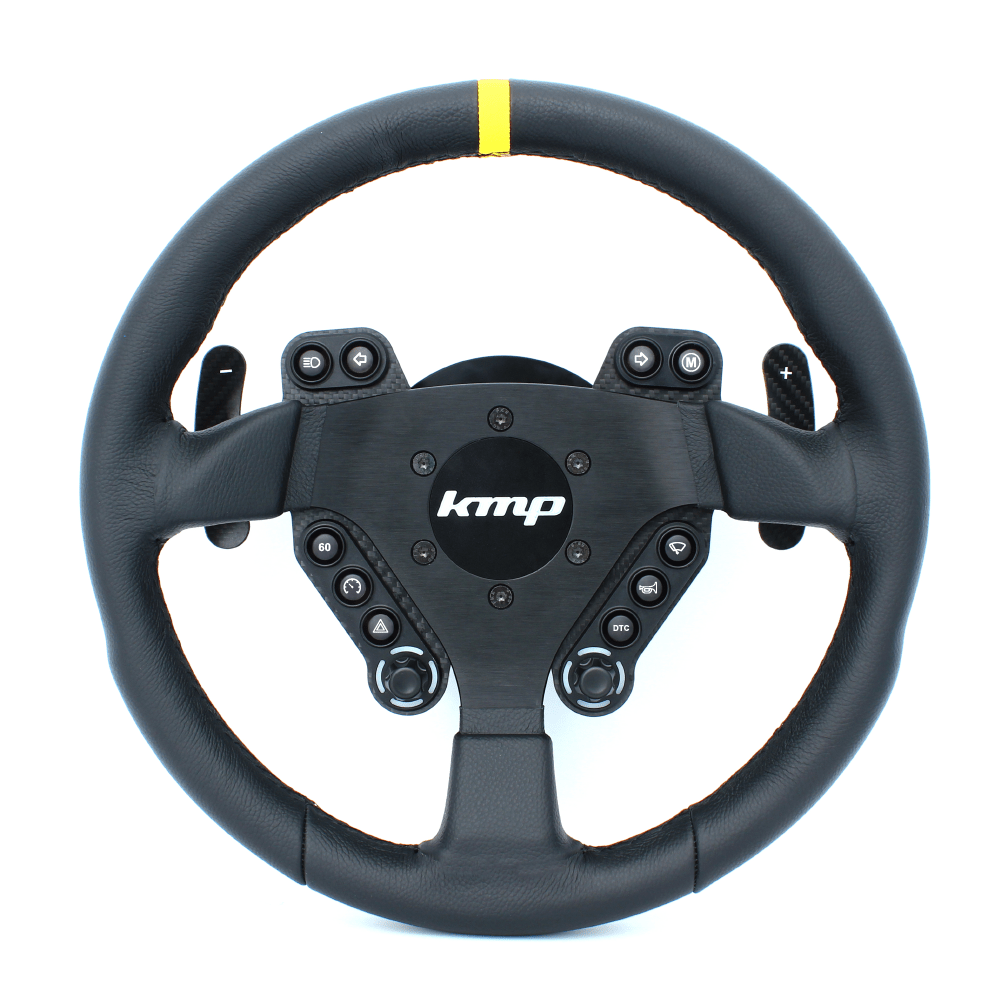

The KMP Clubsport Nürburgring wheel for BMW F8x M3 / M4 and F87 M2 brings indicators, wipers, headlight flash and DTC onto the wheel. Its fixed layout combines ten illuminated buttons with two rotary controls, keeping frequently used track functions close to your hands.

Choose your wheel specification

Choose suede, Alcantara or leather. For a custom finish, select the custom option and use the material, centre stripe and stitching selectors that appear beneath it. Stitching also offers M tri-colour. The colour boxes help you compare your choices, although screens can display colours differently. For a bespoke centre logo, select the bespoke option and upload your artwork with the order.

The fixed spacer is included in the base configuration. A crash hub provides a collapsible adapter. A quick release with a curly cable allows the wheel to detach from the hub while remaining connected to the car. The connector version disconnects both the mechanical mounting and electrical connection, allowing complete wheel removal. Choose from the adapters offered above and check the resulting wheel position against your seat and reach.

Button positions and functions

Read the diagram from the driver’s seat with the centre stripe at 12 o’clock. The number on each button is its SW reference. Inner means nearer the centre of the wheel, outer means nearer the rim. This is the ten-button Clubsport layout, which has different assignments from the Pro-Line.

Clubsport switch positions - each number corresponds to the SW reference in the table.
Clubsport switch positions - each number corresponds to the SW reference in the table.
Button Position Function
SW1 Right lower cluster - bottom DTC
SW2 Right lower cluster - middle Horn
SW3 Right lower cluster - top Wiper / Wash
SW4 Right upper cluster - outer M1 / M2
SW5 Right upper cluster - inner Right indicator
SW6 Left upper cluster - inner Left indicator
SW7 Left upper cluster - outer Flash 6x / High beam
SW8 Left lower cluster - top Code 60 / Limit
SW9 Left lower cluster - middle Cruise / Speed -1
SW10 Left lower cluster - bottom Hazard lights / optional free-to-use output

Rotary and joystick controls

Control Clockwise Anticlockwise Push
Right encoder Scroll down Scroll up Scroll press
Left encoder Speed +1 Speed -1 Resume

Where two actions are separated by a slash, a short press operates the first and a hold longer than one second operates the second. The SW number identifies a physical switch, not a fixed function. Changing its assignment does not move the switch.

Code 60 is a programmed 60 km/h limiter request. It is different from the ordinary cruise-speed increase and decrease controls. The hazard position can be specified as a free-to-use control for external equipment, with the corresponding wiring.

Installation and vehicle equipment

The kit includes the wheel, hub and vehicle interface. The additional Nürburgring functions use the supplied wiring and connectors. The original buttons and stalks remain usable. Enter your exact model and year when ordering. A control can only operate a supported function on the vehicle.

Key Features

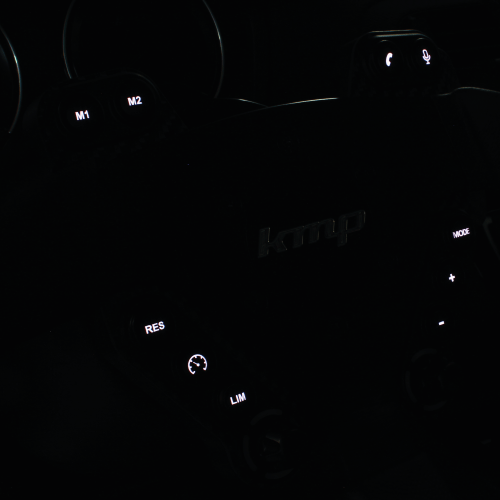

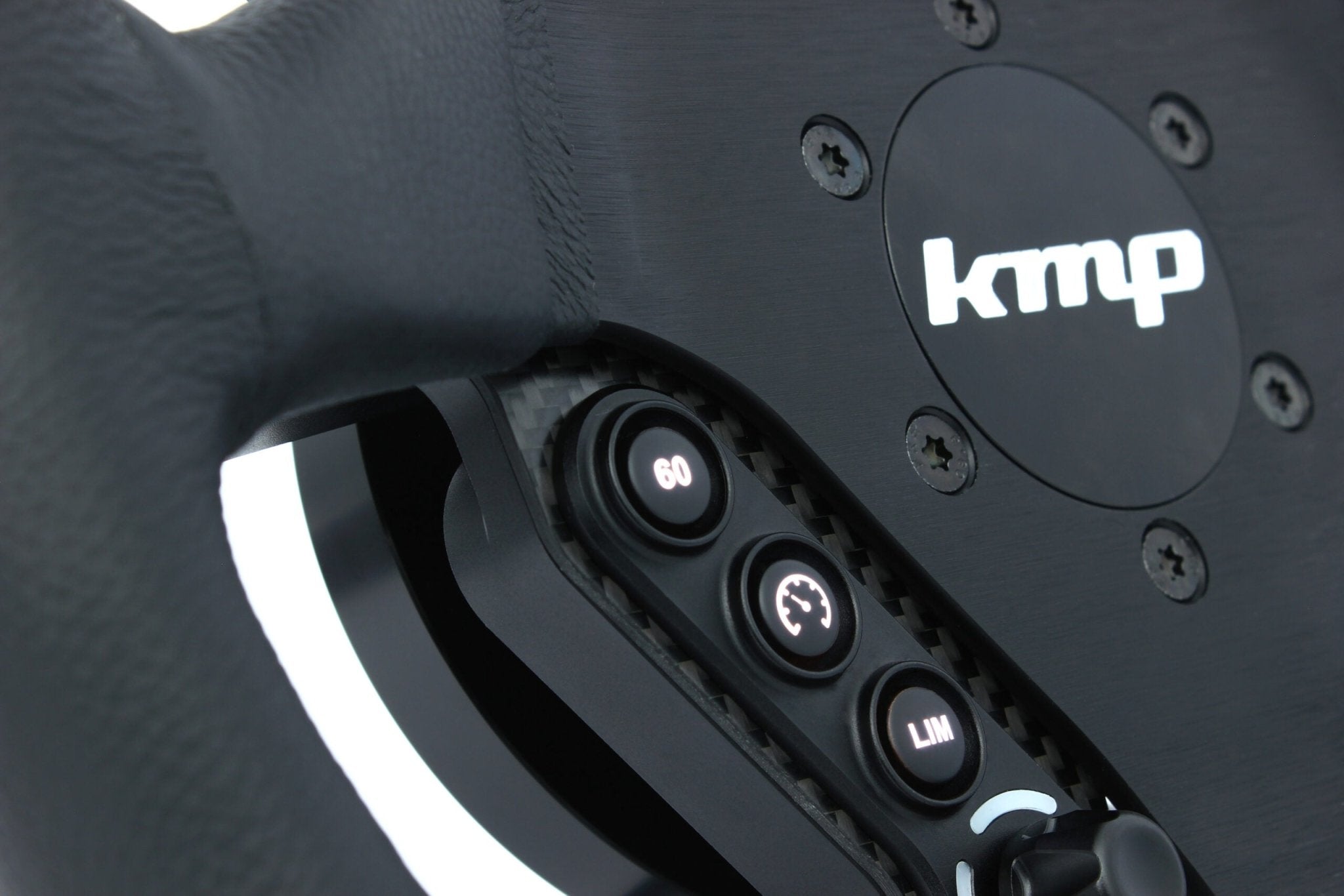

  • Ten illuminated push buttons and two rotary encoders with push function
  • Nürburgring layout with indicator and high-beam access
  • BMW electronic integration - original stalks remain usable
  • Manual or paddle-equipped gearbox configuration
  • Suede, leather, Alcantara or custom finish

Vehicle Compatibility

  • BMW F80 M3, F82 / F83 M4 and F87 M2 / M2 Competition
  • Enter the exact vehicle model and year when ordering
  • Functions depend on factory equipment and the selected configuration

What's Included

  • KMP Clubsport Nürburgring wheel
  • Selected steering adapter and vehicle electronics
  • Additional wiring for Nürburgring functions
  • Shift paddles with the DCT / automatic option

FAQs

How does the Nürburgring version differ?

Its control layout brings additional driving functions onto the wheel. Extra wiring is supplied for these functions.

Do the original stalks still work?

Yes. The Nürburgring controls work alongside the original stalks.

Which gearbox option should I choose?

Choose manual for a wheel without shift paddles, or DCT / automatic for the paddle-equipped version matching your vehicle.

Which quick release allows complete removal?

Choose the quick release with an electrical connector. A curly-cable quick release remains tethered to the car.

How do I identify SW1, SW2 and the other buttons?

Use the Clubsport diagram and function table in Product Description. They are viewed from the driver’s seat. SW1 is the lowest numbered button in the right-hand lower cluster. The rotary controls are listed separately.

Can I change this fixed button layout?

This listing uses KMP’s published Clubsport Nürburgring layout. Choose Pro-Line if you want to specify individual button assignments.

How do I specify my finish and bespoke logo?

Choose suede, Alcantara or leather. For a custom finish, select the custom option and use the material, centre stripe and stitching selectors that appear beneath it. Stitching also offers M tri-colour. The colour boxes help you compare your choices, although screens can display colours differently. For a bespoke centre logo, select the bespoke option and upload your artwork with the order.
