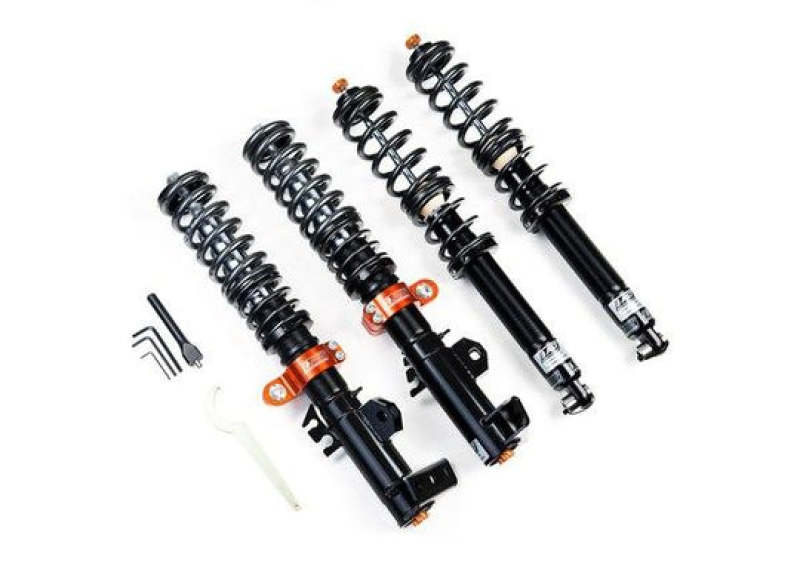

AST 5100 Coilovers – BMW F87 M2 & M2 Competition
Product Description
AST 5100 coilovers for the BMW F87 M2 and M2 Competition combine adjustable ride height with single-adjustable rebound damping. Street, Street Performance and Club Racing versions provide different mounting equipment and rear suspension layouts. The configurations available are application-specific: the Street Performance kit listed here is for the standard M2, while Street and the appropriate Club Racing kit also cover the stated M2 Competition and CS applications.
Damper design & adjustment: The high-pressure monotube dampers use inverted front struts and are rebuildable. Springs are supplied with each kit, with spring-platform adjustment used to establish ride height. Rebound adjustment controls the resistance during damper extension after compression; it is a separate setting from ride height and does not change the spring rate.
Configuration differences

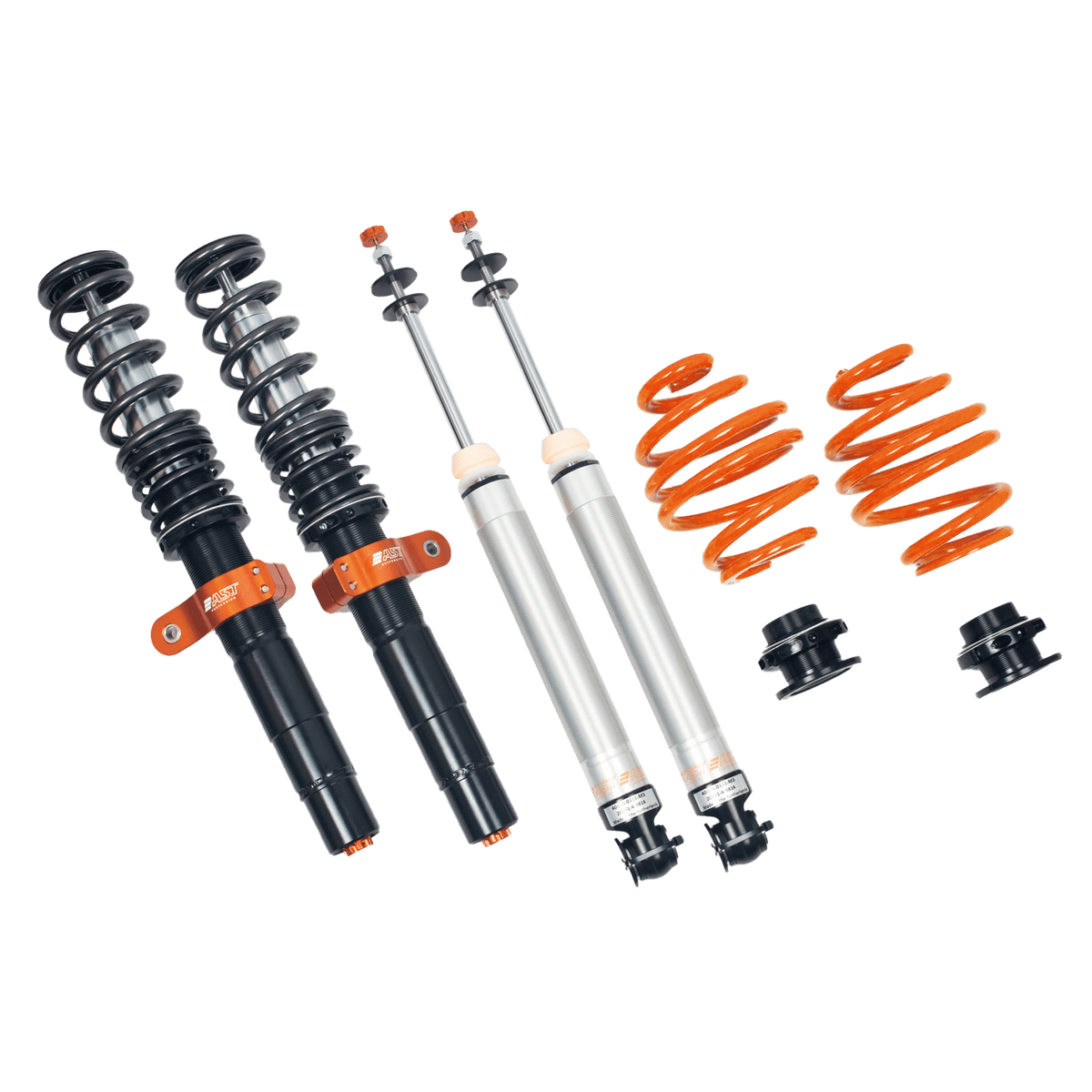

Street retains the original front and rear top mounts and the separate rear spring and damper arrangement.
Street Performance adds camber-adjustable front top mounts while keeping the original rear mounts and separate rear springs. The additional front mounting adjustment changes alignment capability, rather than adding a second damping control.

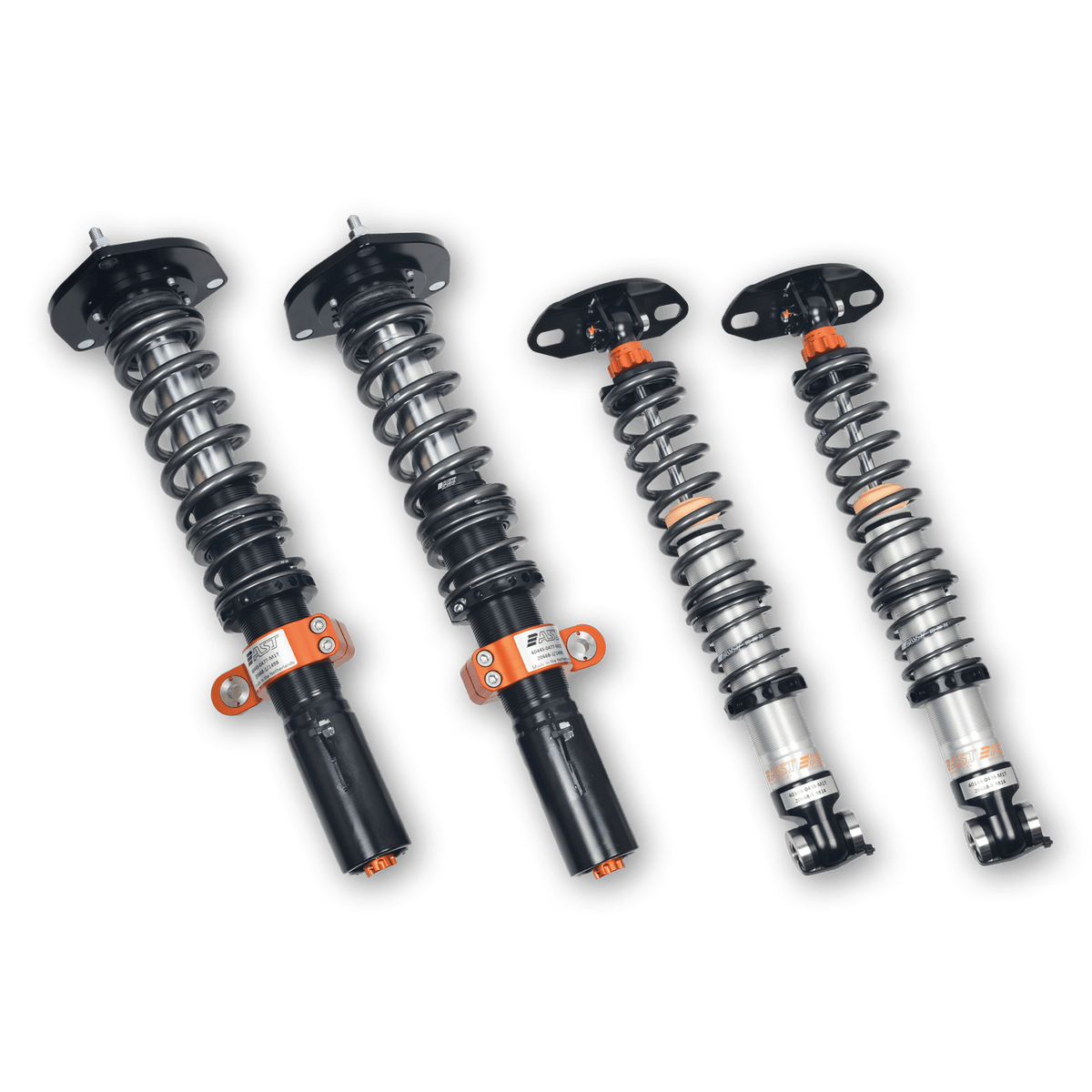

Club Racing includes camber-adjustable front and solid rear top mounts and converts the rear arrangement to a true coilover, carrying the spring on the rear damper. Separate Club Racing part numbers are used for the standard M2 and the M2 Competition/CS, so the vehicle choice matters even where the configurations share the same description.
Drop links are included with all configurations offered here.
Installation & setup: Ride height, wheel clearance and alignment should be checked as part of the installation. Where a car is equipped with factory Electronic Damper Control, Clubsport Garage recommends coding out EDC for non-electronic coilovers where supported; a compatible KW EDC cancellation kit provides a separately available hardware alternative.
Further information below.
