AST 5100 Coilovers – BMW G20/G21 M340i, G22 M440i & G42 M240i

By AST Suspension
From £2,568.00
Worldwide Shipping
Official Dealer
View details

Product Description

AST 5100 coilovers for the listed BMW G20/G21 M340i, G22 M440i and G42 M240i applications combine adjustable ride height with single-adjustable rebound damping. Street, Street Performance and Club Racing configurations offer different mounting equipment and rear suspension layouts. Rear-wheel-drive and xDrive versions use distinct part numbers, and not every configuration is offered for both drivetrains.

AST coilover technical overview

Damper design & adjustment: The rebuildable high-pressure monotube dampers are supplied with springs. Rebound adjustment changes the resistance during damper extension, while spring-platform adjustment establishes ride height. These controls do not change the spring rate. The Street range includes a non-inverted rear-wheel-drive version as well as inverted versions; this is a genuine construction difference and remains identified in the options.

Configuration differences

Street retains the original top mounts and the separate rear spring and damper arrangement.

Street Performance uses inverted front struts and adds camber-adjustable front top mounts, retaining the original rear mounts and separate rear springs. It therefore provides an additional alignment adjustment without changing to a true rear coilover layout.

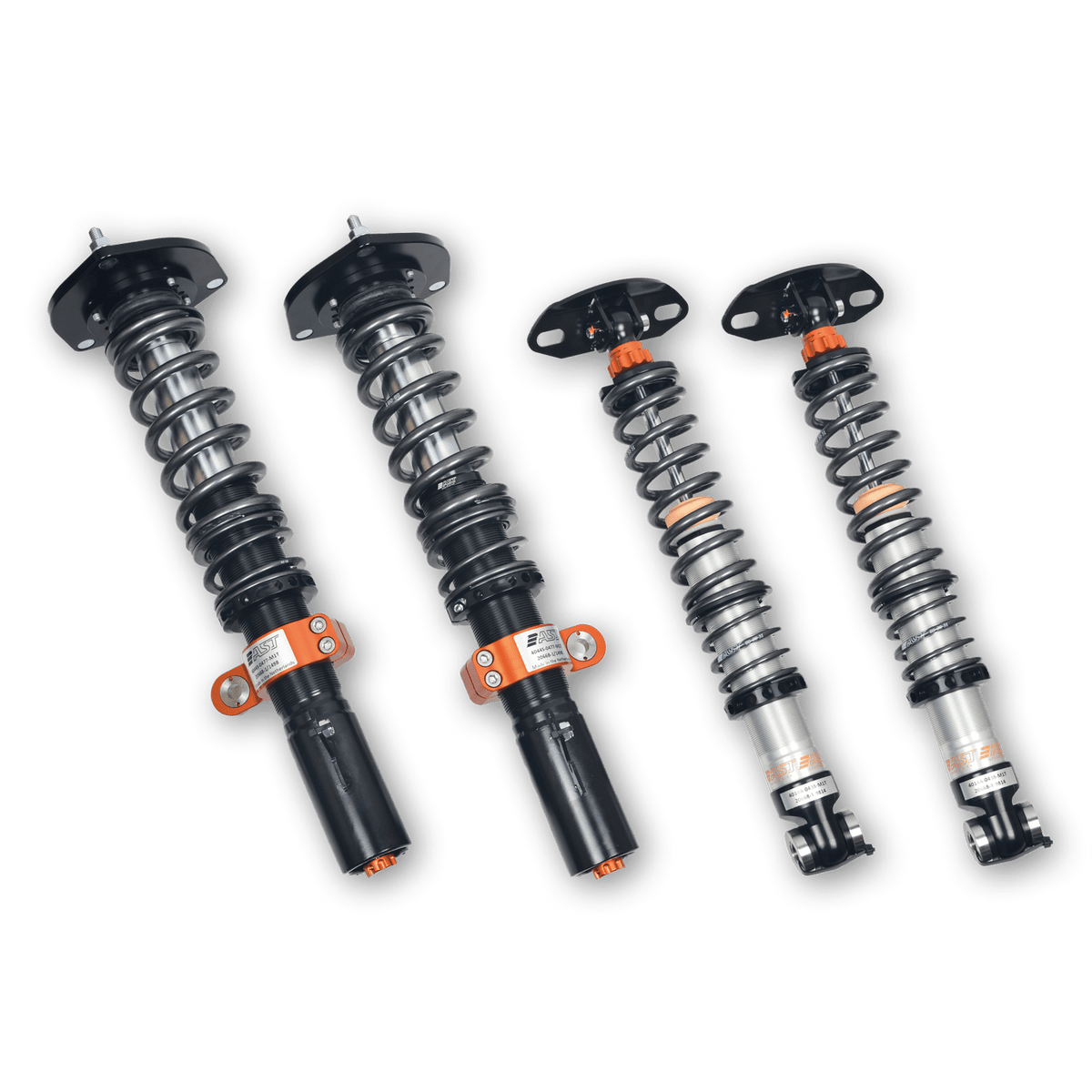

Club Racing uses inverted front struts, camber-adjustable front top mounts and solid rear top mounts. Its rear springs sit on the rear dampers in a true coilover arrangement, unlike the separate spring and damper layout of the Street versions.

Drop links are included with every configuration offered on this listing.

Installation & setup: Select the correct drivetrain and check the compatibility information for the specific chassis. For factory Electronic Damper Control applications, Clubsport Garage recommends coding out EDC when fitting non-electronic coilovers, where supported. A compatible KW EDC cancellation kit is a separately available hardware alternative. Final installation should include ride-height and alignment setup and checks for wheel, tyre and suspension clearance.

Further information below.

Key Features
  • Single-adjustable rebound damping.
  • High-pressure monotube dampers with rebuildable construction.
  • Adjustable spring platforms for ride-height setting.
  • Front camber adjustment on configurations supplied with adjustable top mounts.

Vehicle Compatibility
  • Rear-wheel drive: BMW G20 M340i and G42 M240i.
  • xDrive: BMW G20 M340i, G21 M340i Touring, G22 M440i and G42 M240i.
  • Select the kit for the vehicle's drivetrain. Not every configuration is available for both drivetrains.
  • Factory electronic damping requires the appropriate coding or cancellation solution with non-electronic replacement dampers.

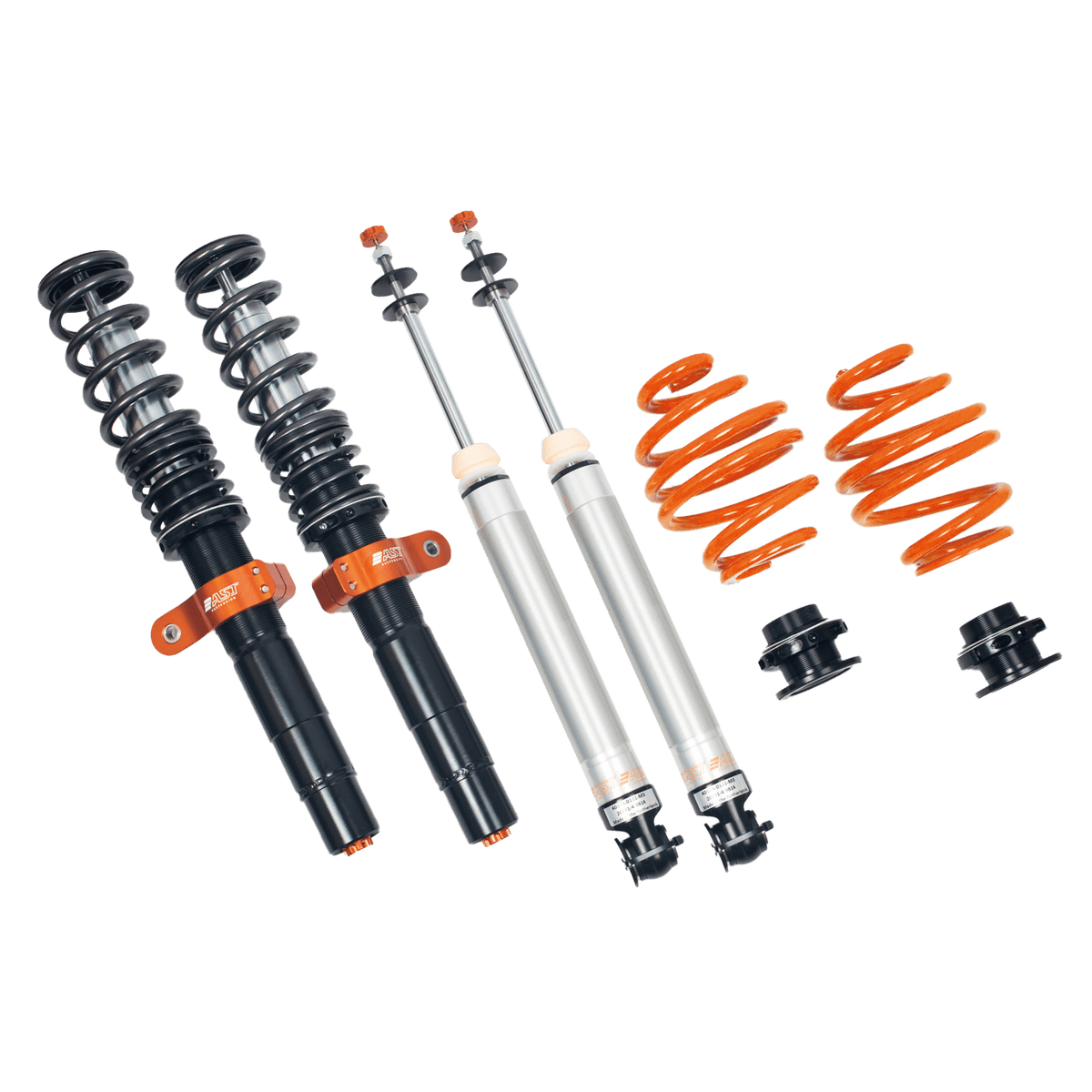

What's Included
  • AST 5100 front and rear dampers.
  • Springs for the selected configuration.
  • Street Performance: camber-adjustable front top mounts.
  • Club Racing: camber-adjustable front and solid rear top mounts.
  • Drop links.

FAQs

Does changing the damper setting change the spring rate or ride height?

No. Rebound adjustment changes damping resistance. Ride height is set through the spring platforms, and the spring rate remains a property of the installed spring.

Can the dampers be serviced?

Yes. The AST 5100 uses rebuildable dampers. Servicing should follow AST's requirements for the particular application and use.

Does the car need an alignment after fitting?

The alignment should be checked and set at the chosen ride height. Wheel and tyre clearance also needs checking with the car's actual wheel specification.
