AST 5100 Coilovers – BMW G8X M2, M3 & M4
AST 5100 Coilovers – BMW G8X M2, M3 & M4

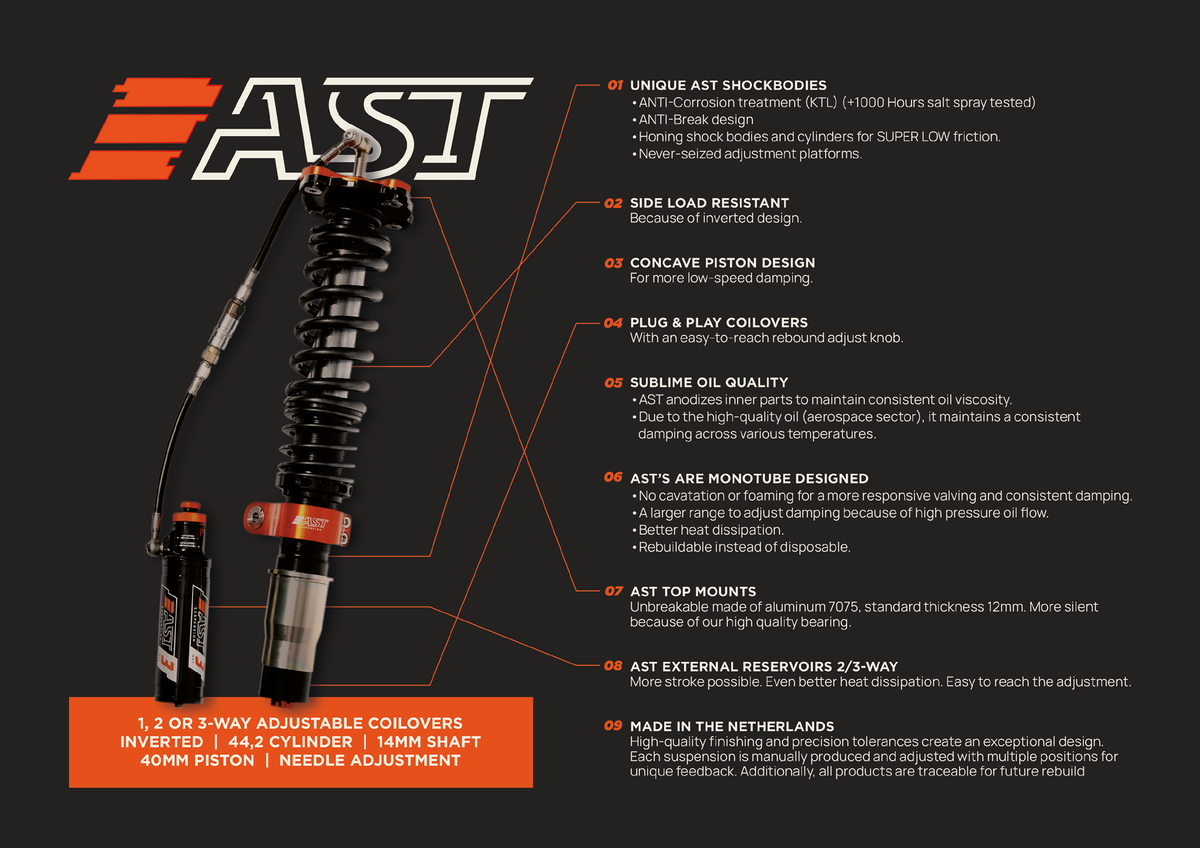

AST Suspension coilover technical overview showing damper construction and design features

AST 5100 Coilovers – BMW G8X M2, M3 & M4

By AST Suspension
From £2,772.00
Worldwide Shipping
Official Dealer
View details

Product Description

AST 5100 coilovers for the BMW G8X M2, M3 and M4 combine adjustable ride height with single-adjustable rebound damping. Street, Street Performance and Club Racing configurations provide a choice of top mounts and rear suspension layout. All versions use inverted front struts, so the meaningful choices are the configuration and the correct rear-wheel-drive or xDrive application.

AST coilover technical overview

Damper design & adjustment: The high-pressure monotube dampers are rebuildable and supplied with springs. Rebound adjustment controls the resistance as the damper extends after compression, while spring-platform adjustment sets ride height. Changing a rebound setting does not change the spring rate, and adding camber-adjustable mounts changes the available alignment adjustment rather than the number of damping controls.

Configuration differences

Street: Retains the original front and rear top mounts, with the rear springs mounted separately from the dampers.

Street Performance: Adds camber-adjustable front top mounts while retaining the original rear mounts and separate rear spring arrangement. Both Street and Street Performance therefore preserve the original-style rear spring and damper layout.

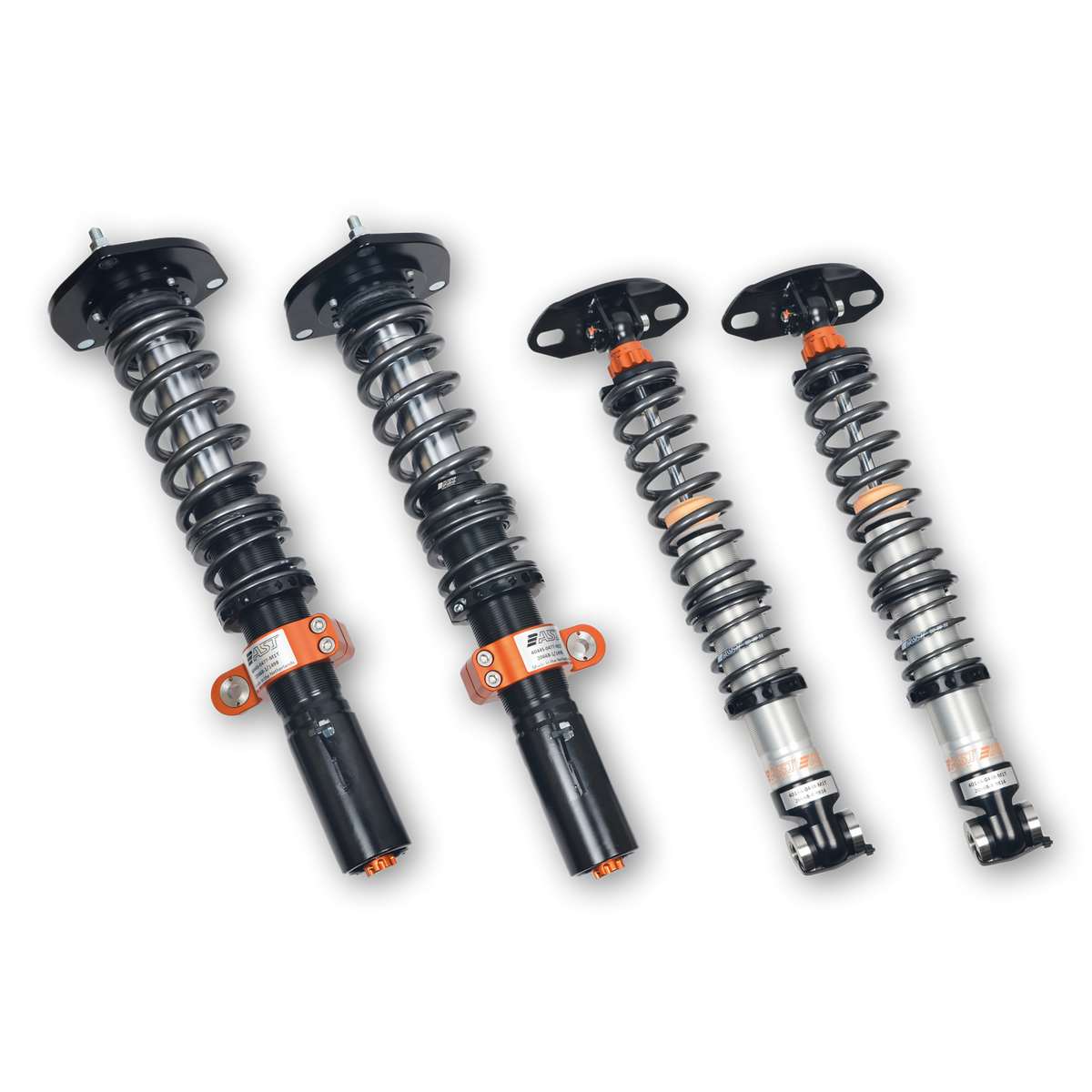

Club Racing: Includes camber-adjustable front top mounts and solid rear top mounts. It also uses true rear coilovers, with each rear spring carried on its damper rather than sitting separately in the suspension. This makes Club Racing materially different from Street Performance, rather than simply a version with another set of mounts.

Drop links are included with all configurations offered here.

Installation & setup: For vehicles fitted with factory Electronic Damper Control, Clubsport Garage recommends coding out EDC when fitting non-electronic coilovers, where supported for the vehicle. A compatible KW EDC cancellation kit is a separately available hardware alternative. The new dampers remain manually adjusted. Ride height and alignment should be established during installation, with wheel and tyre clearance checked throughout the suspension's working travel.

Further information below.

Key Features
  • Single-adjustable rebound damping.
  • High-pressure monotube dampers with rebuildable construction.
  • Adjustable spring platforms for ride-height setting.
  • Front camber adjustment on configurations supplied with adjustable top mounts.

Vehicle Compatibility
  • Rear-wheel drive: BMW G80 M3, G82 M4 and G87 M2.
  • xDrive: BMW G80 M3, G81 M3 Touring, G82 M4 and G83 M4 Convertible.
  • Select the vehicle's actual drivetrain. An xDrive car still requires the xDrive kit when a rear-drive driving mode is selected.
  • Factory electronic damping requires the appropriate coding or cancellation solution with non-electronic replacement dampers.

What's Included

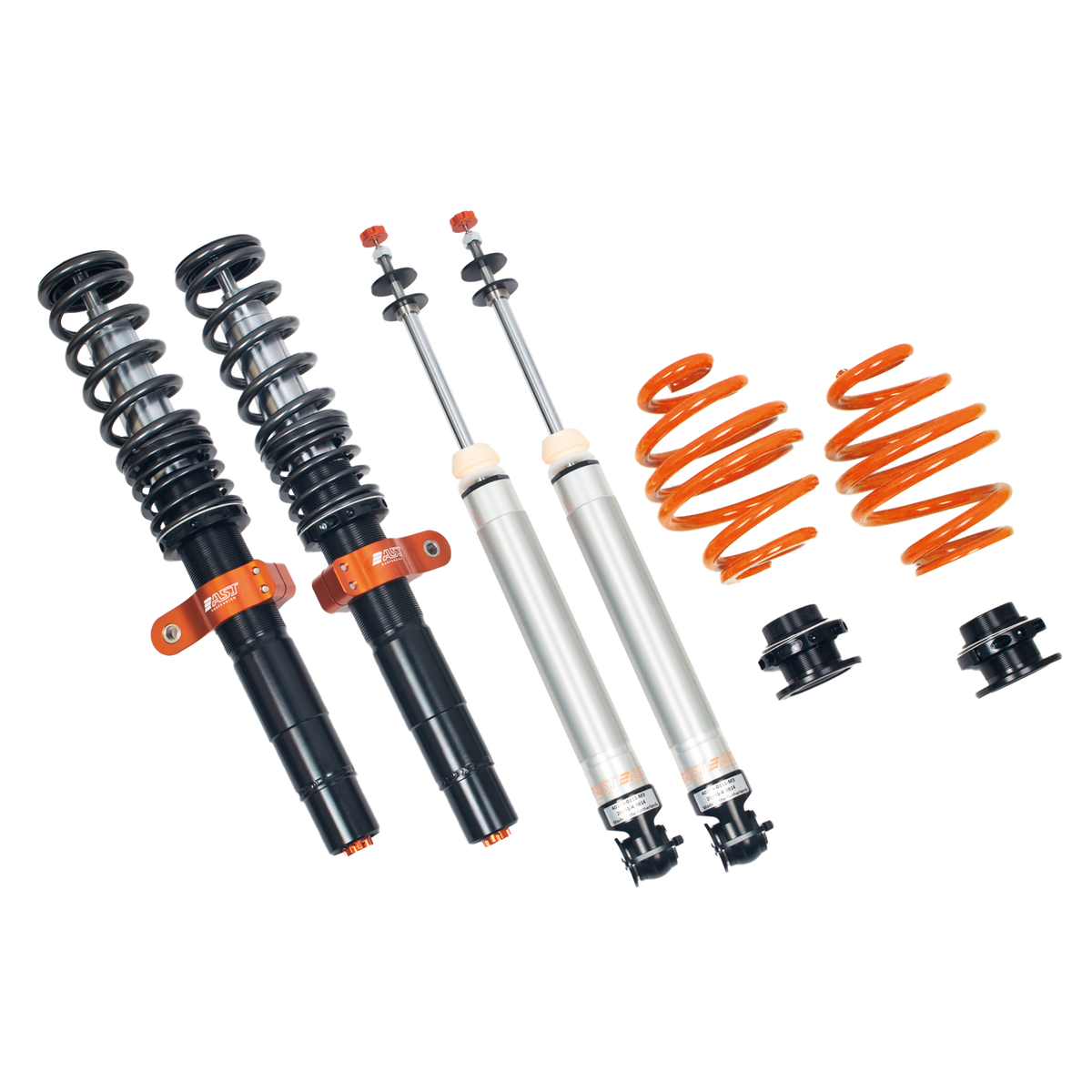

  • AST 5100 front and rear dampers.
  • Springs for the selected configuration.
  • Street Performance: camber-adjustable front top mounts.
  • Club Racing: camber-adjustable front and solid rear top mounts.
  • Drop links.

FAQs

Does changing the damper setting change the spring rate or ride height?

No. Rebound adjustment changes damping resistance. Ride height is set through the spring platforms, and the spring rate remains a property of the installed spring.

Can the dampers be serviced?

Yes. The AST 5100 uses rebuildable dampers. Servicing should follow AST's requirements for the particular application and use.

Does the car need an alignment after fitting?

The alignment should be checked and set at the chosen ride height. Wheel and tyre clearance also needs checking with the car's actual wheel specification.
