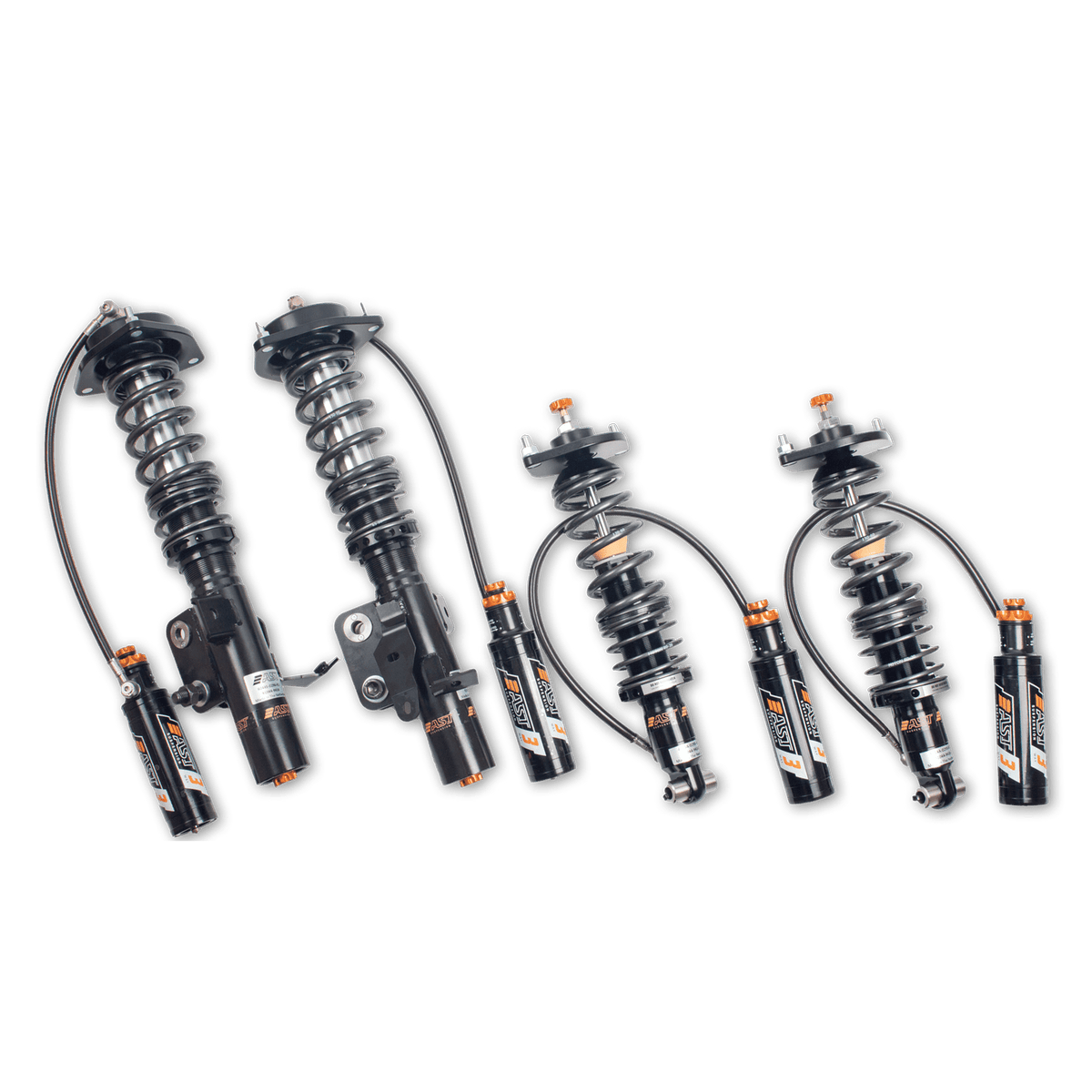

AST 5300 3-Way Motorsport Coilovers – BMW F87 M2 & M2 Competition
Product Description
AST 5300 Motorsport coilovers for the BMW F87 M2 and M2 Competition combine adjustable ride height with independent rebound, low-speed compression and high-speed compression controls. Separate kits are offered for the standard M2 and the stated M2 Competition/CS applications, matching the mounting specification to the vehicle.
Damper design & adjustment: The high-pressure monotube dampers use inverted front struts and external reservoirs. Low-speed and high-speed compression are adjusted separately at the reservoirs, with an independent rebound control. The speed distinction refers to damper movement, not the speed of the car. It allows different suspension inputs to be addressed when developing a setup, rather than adjusting all compression behaviour with one control.

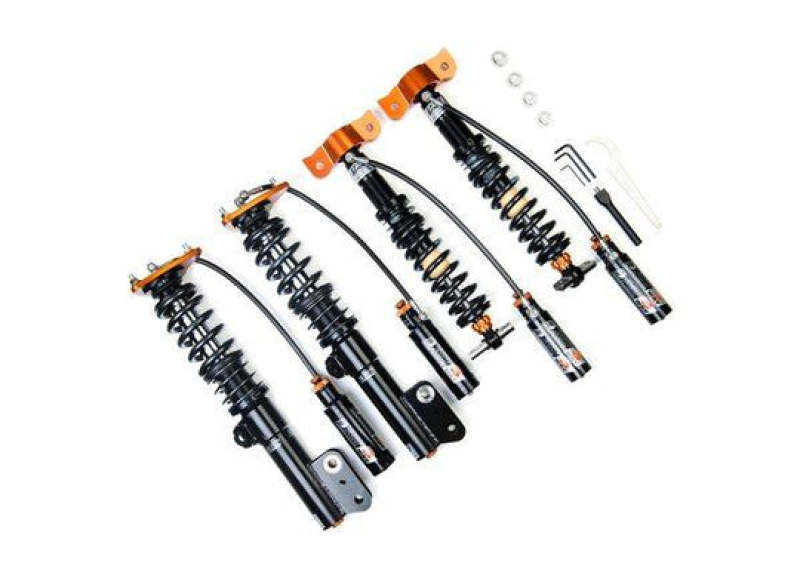

Mounting, supplied equipment & reservoirs: Springs and camber-adjustable front top mounts are supplied, with rear top-mount provision determined by application. Front camber adjustment forms part of the wheel-alignment setup and is separate from both damping and ride height. The dampers are rebuildable for servicing during their working life. Drop links are included with both configurations offered here. RAC-B3104SD is the standard M2 kit, while RAC-B2104SD covers the listed M2 Competition/CS application. The external reservoirs require secure mounting and carefully planned hose routing, with adequate clearance throughout steering and suspension movement. Reservoir mounting brackets are optional accessories rather than standard kit contents.
Installation & setup: Final ride height, wheel clearance and alignment should be established before refining the damping settings. For vehicles equipped with factory Electronic Damper Control, Clubsport Garage recommends coding out EDC when fitting non-electronic coilovers, where supported. A compatible KW EDC cancellation kit provides a separately available hardware alternative, without retaining electronic adjustment of the new dampers.
Further information below.
