AST 5300 3-Way Motorsport Coilovers – BMW G20/G21 M340i, G22 M440i & G42 M240i - Clubsport Garage

AST 5300 3-Way Motorsport Coilovers – BMW G20/G21 M340i, G22 M440i & G42 M240i

By AST Suspension
£5,160.00
Worldwide Shipping
Official Dealer
View details

Product Description

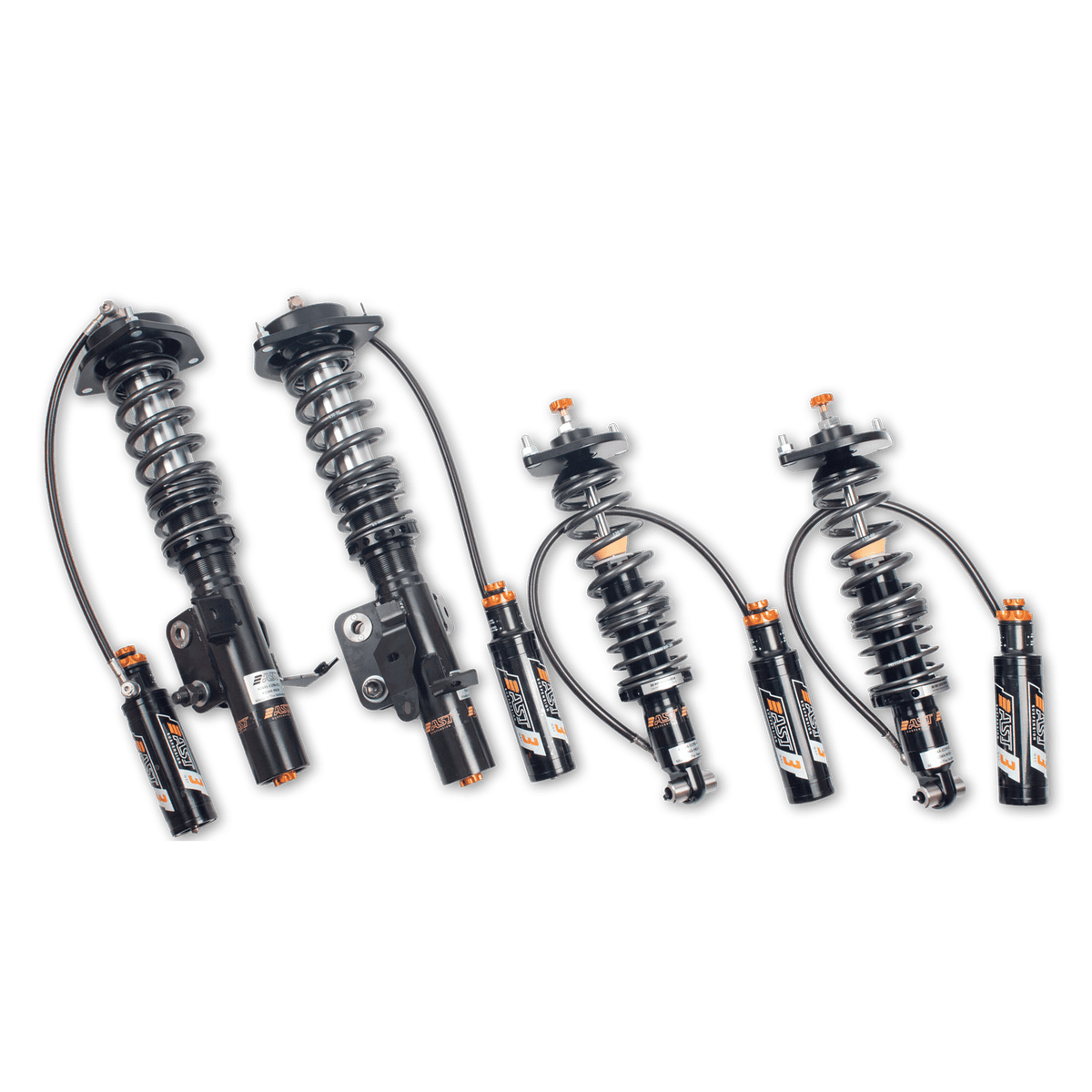

AST 5300 Motorsport coilovers for the listed BMW G20/G21 M340i, G22 M440i and G42 M240i applications combine adjustable ride height with independent rebound, low-speed compression and high-speed compression adjustment. Rear-wheel-drive and xDrive versions use separate kits and must be selected to match the vehicle.

AST coilover technical overview

Damper design & adjustment: The system uses rebuildable high-pressure monotube dampers with inverted front struts and external reservoirs. Separate low-speed and high-speed compression controls are located on the reservoirs, with an independent rebound adjustment. The compression ranges refer to damper velocity rather than road speed, giving separate control over different suspension inputs.

Mounting, supplied equipment & reservoirs: Springs and camber-adjustable front top mounts are included, with rear mounting provision following the application-specific kit specification. Front camber adjustment acts on alignment and is separate from the three damper controls. Ride height is set through the spring platforms; changing a damping setting does not change the spring rate. Drop links are included with both drivetrain versions. RAC-B2022SD is the rear-wheel-drive kit and RAC-B2024SD is the xDrive kit for the applications listed. The external reservoirs require secure mounting and hose routing that remains clear throughout steering and suspension travel. Reservoir mounting brackets are optional accessories rather than standard kit contents.

Installation & setup: For factory Electronic Damper Control applications, Clubsport Garage recommends coding out EDC when fitting non-electronic coilovers, where supported. A compatible KW EDC cancellation kit provides a separately available hardware alternative. The replacement dampers remain manually controlled. Final installation should include ride-height and alignment setup and checks for wheel, tyre and hose clearance at the selected height.

Further information below.

Key Features
  • Independent rebound, low-speed compression and high-speed compression adjustment.
  • High-pressure monotube dampers with inverted front struts.
  • Separate compression controls on the remote reservoirs.
  • Adjustable ride height and camber-adjustable front top mounts.
  • Rebuildable damper construction for servicing.

Vehicle Compatibility
  • Rear-wheel drive: BMW G20 M340i and G42 M240i.
  • xDrive: BMW G20 M340i, G21 M340i Touring, G22 M440i and G42 M240i.
  • Select the kit for the vehicle's drivetrain. Not every configuration is available for both drivetrains.
  • Factory electronic damping requires the appropriate coding or cancellation solution with non-electronic replacement dampers.

What's Included
  • AST Motorsport front and rear dampers with remote reservoirs.
  • Springs.
  • Camber-adjustable front top mounts; rear top mounts where supplied for the application.
  • Drop links.

FAQs

Do low-speed and high-speed compression refer to vehicle speed?

No. They refer to the speed of damper movement. Both can be relevant at the same road speed when the suspension encounters different inputs.

Are reservoir mounting brackets included?

No. Reservoir mounting brackets are optional accessories. The installation needs secure reservoir positioning and hose clearance throughout steering and suspension movement.

Can the dampers be serviced?

Yes. The 5300 uses rebuildable dampers. Follow AST's servicing guidance for the vehicle and its use.
