do88 Performance Charge Pipe – BMW G-Series B58 Gen 2

Sale price £326.00 Regular price £326.06
Available – Dispatched within 7–10 Days
Worldwide Shipping
Official Dealer

A CLOSER LOOK PRODUCT DETAILS

THE DETAILS MAKE THE DIFFERENCE.

Explore the product information, key features and compatibility notes below. Unsure about a specification? Get in touch before ordering.

01 / BRANDdo88
02 / CATEGORYCharge Pipes
03 / NEED ADVICE?CONTACT THE TEAM

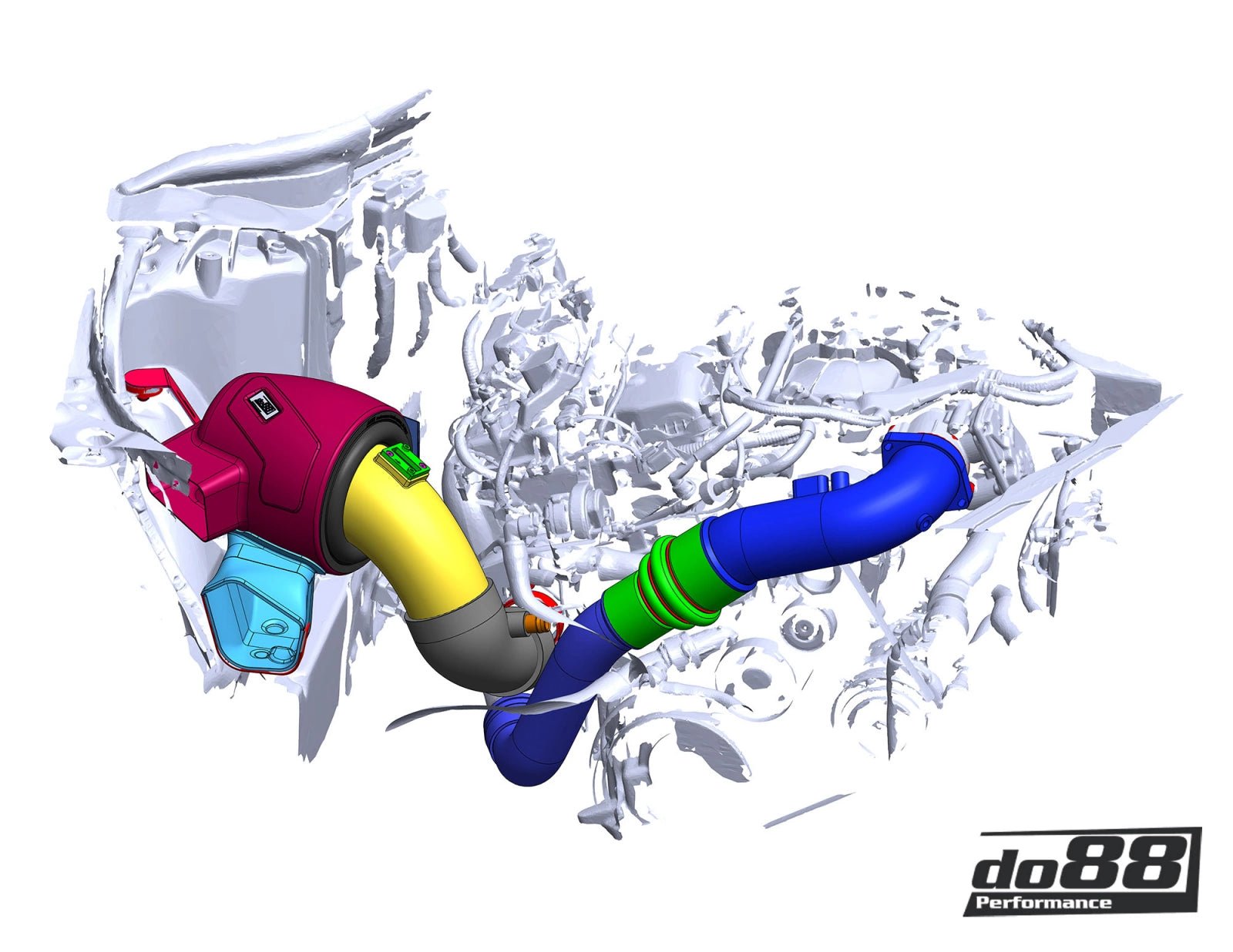

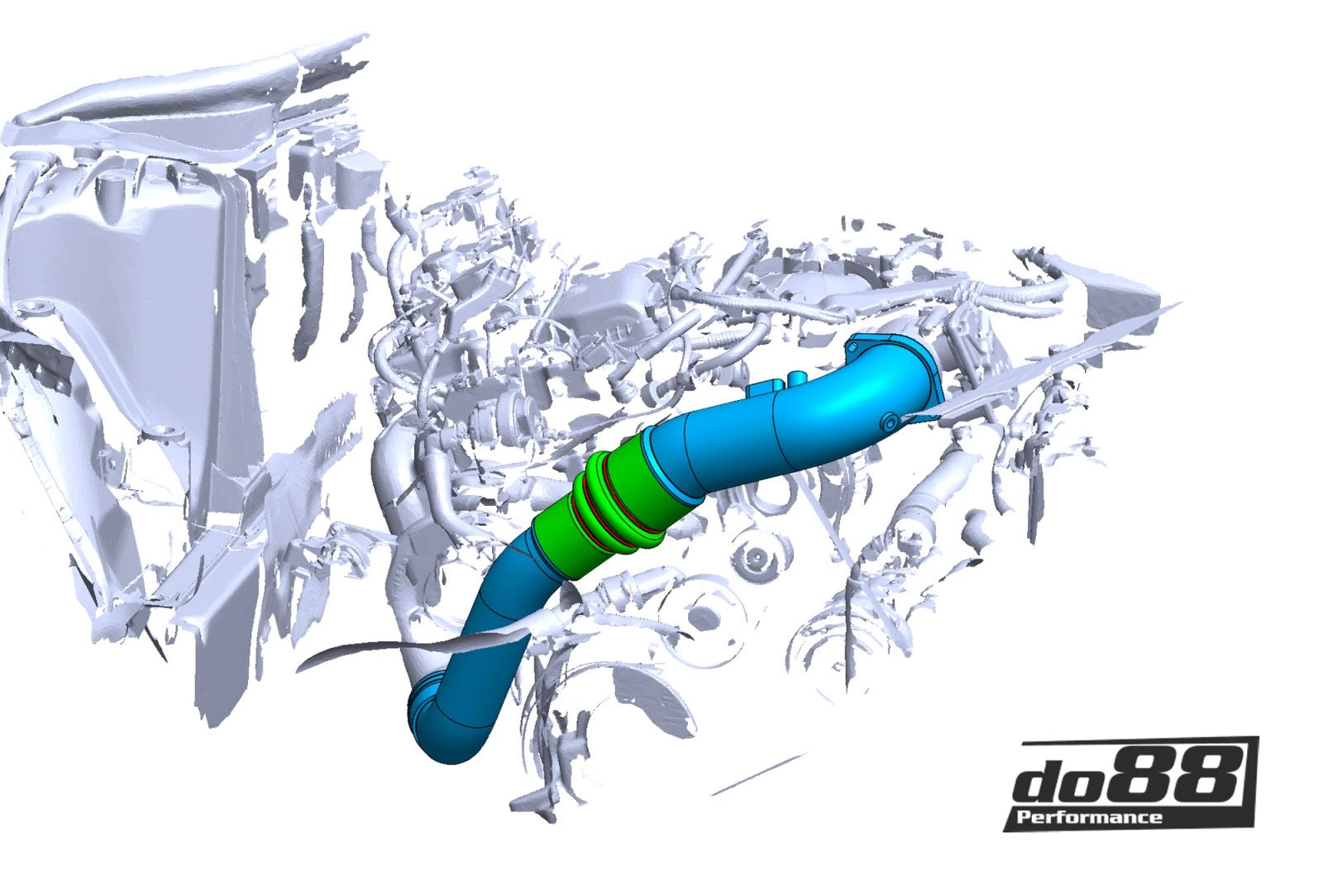

do88 Performance Charge Pipe BMW G Series B58 Gen 2 replaces the corresponding original charge-air pipework on the listed applications. The component is designed to address restriction and the connection or durability limitations identified by do88.

Mandrel-bent aluminium tubes form the main pipework, with the connection and collector details specified below. This allows a larger, controlled internal passage through the installation space.

Auxiliary ports provide the connections specified below for compatible injection or pressure-measurement equipment. Supplied blanking plugs must remain fitted when those ports are unused.

Further information below.

Key Features

  • Upgrade your engine with the charge pipe kit for B58 Gen 2 found in BMW M340i and more
  • The B58 Gen 2 engine is fantastic but it has a known reliability issue: its charge pipe.
  • Many aftermarket charge pipe kits for the B58 engine are available, but in the opinion, most are not properly designed.
  • Many competitors use a basic design: two pipes joined by a straight reducing silicone hose.
  • Such design is almost certain to cause problems with the hose popping off due to it does not allow movement from temperature changes.
  • A common solution people think of is tightening the clamps more, but this will in most cases break the pipes since it will deform the clamping surface.
  • solution is an aramid reinforced silicone hose with 3-humps.

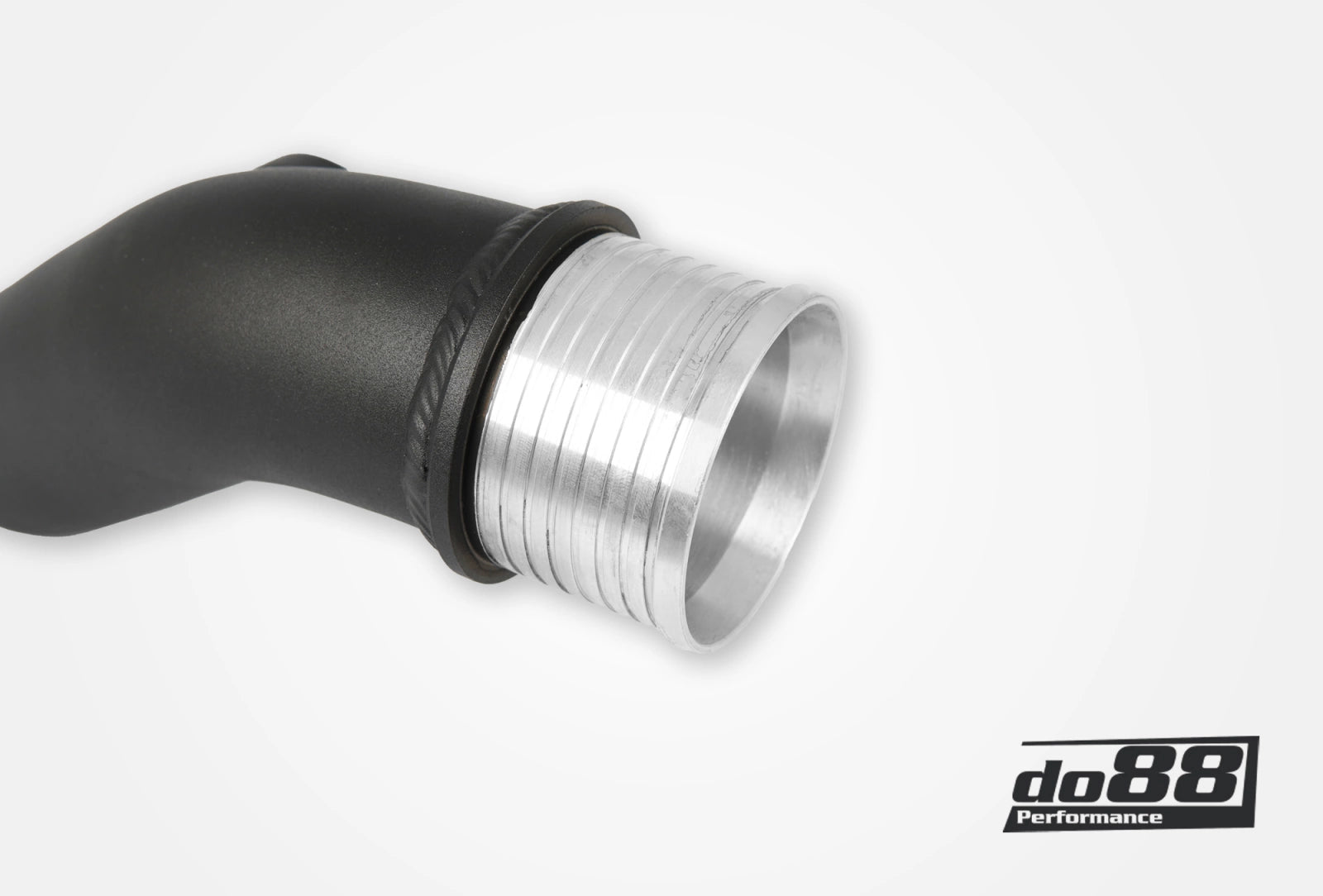

  • To further strengthen the design the pipes have CNC-machined 6063 hose connection ends with 3mm wall thickness.
  • These hose connections won’t deform even for overtightened hose clamps.
  • charge pipes don’t only solve the durability but of course also improve the performance.
  • The lower pipe measures 60mm (2 3/8”) and the upper pipe 76mm (3”), they effectively reduce the pressure drop and cut down on turbulence.

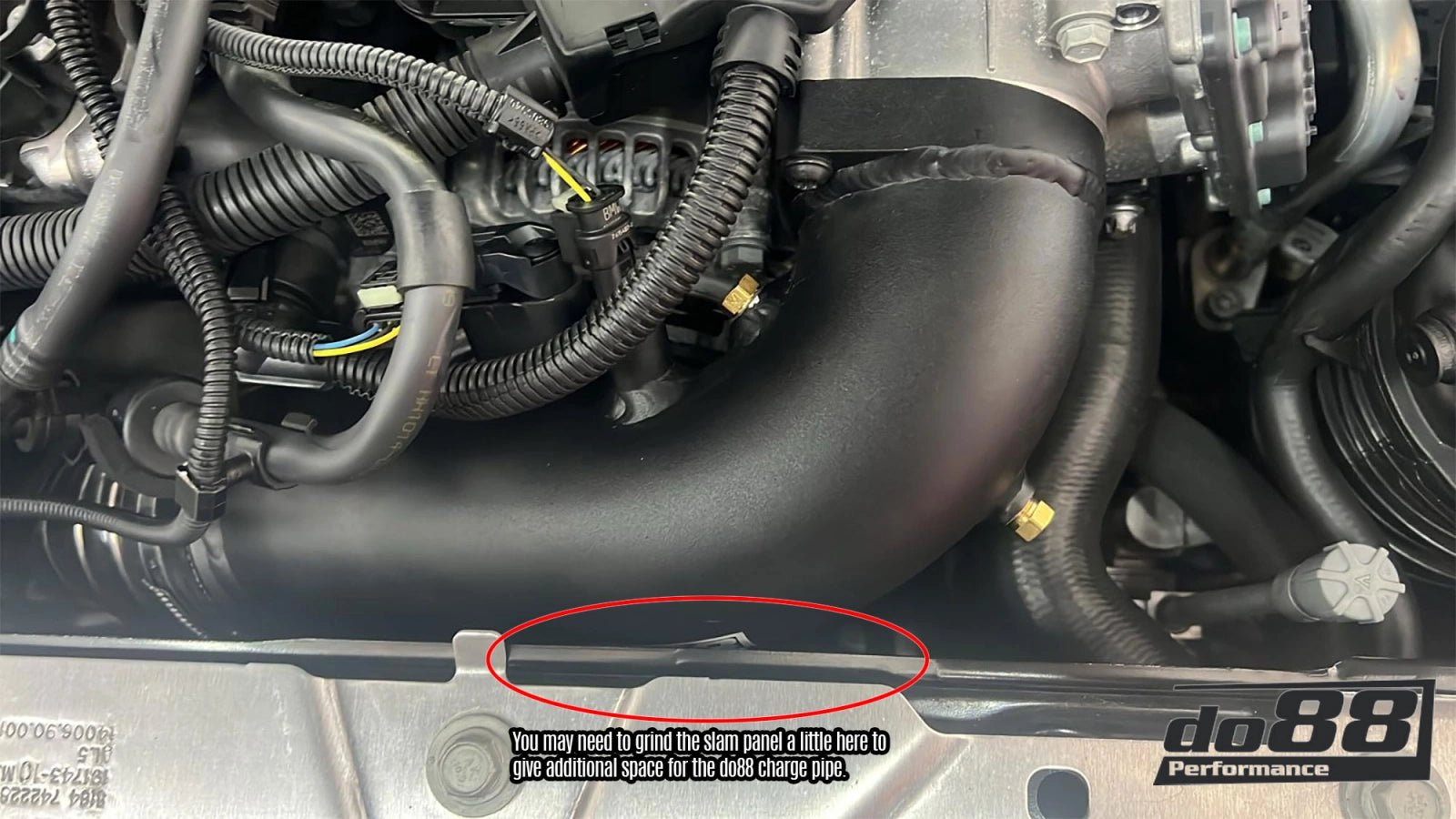

  • In some cases, it may be necessary to grind the edge of this slam panel by a few millimeters to provide additional space for the charge pipe.
  • Special designed 3-humped reduced silicone hose reinforced with high temperature rated aramid fabric and outer stainless-steel rings.
  • Super high quality hose clamps from Mikalor included.

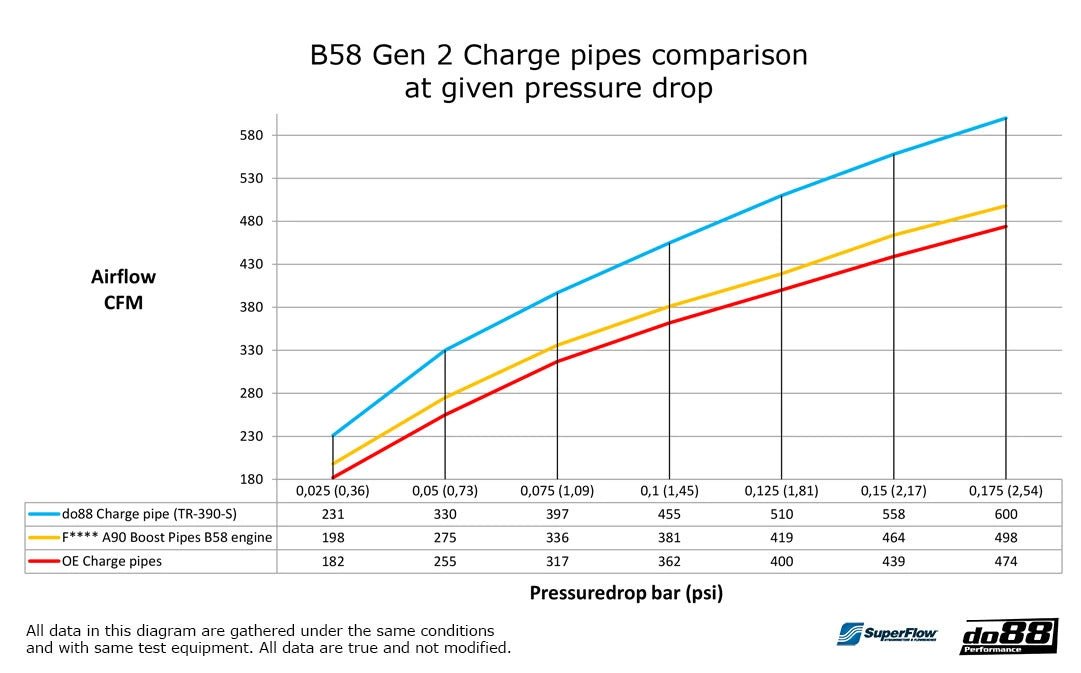

  • 27 % more flow than OEM, with 558 CFM @ 150mbar (2.17psi) compared to the OEM 439 CFM.
  • CNC machined hose connections with matching inner diameter to the pipe that gives a deformation safe hose clamping surface.

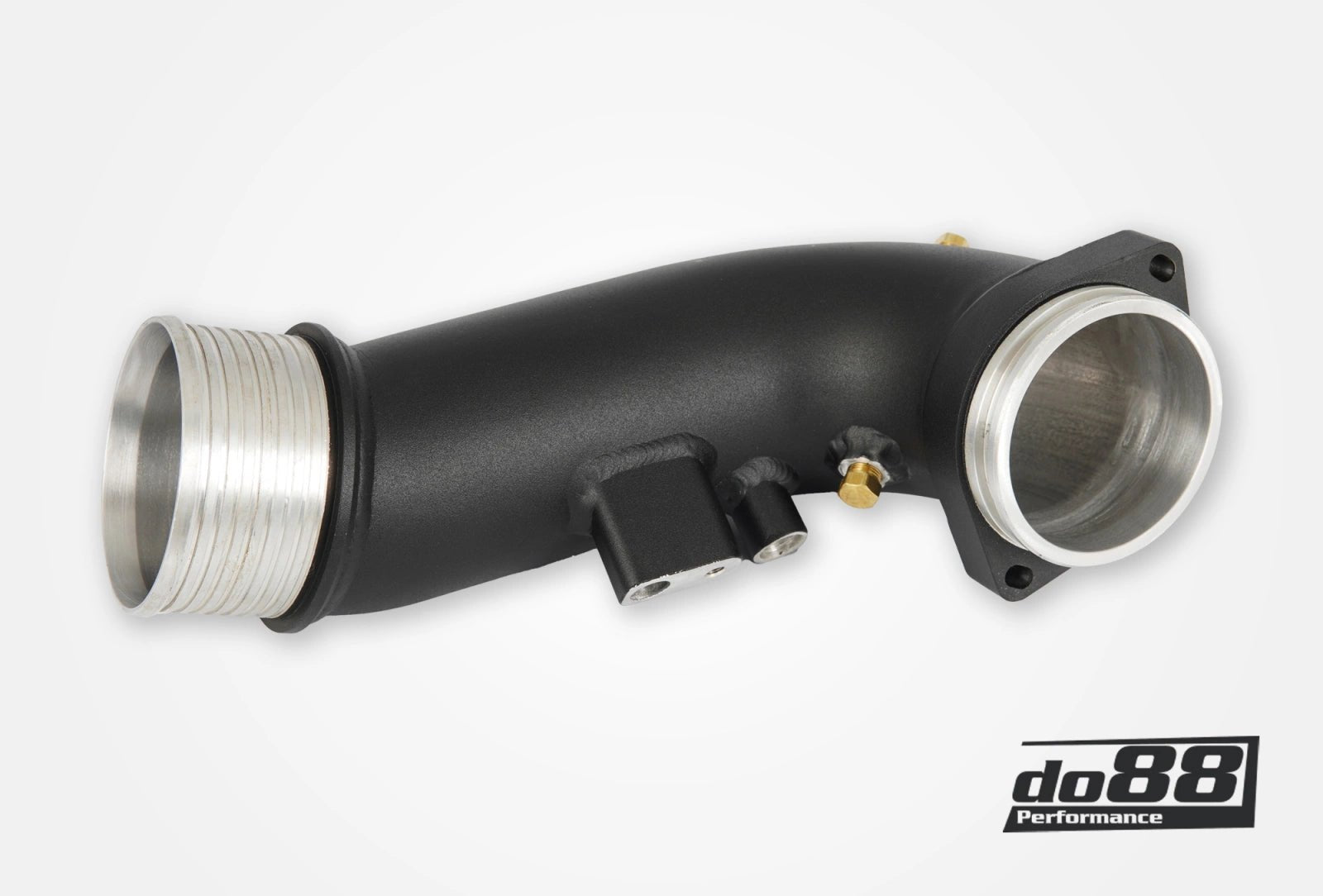

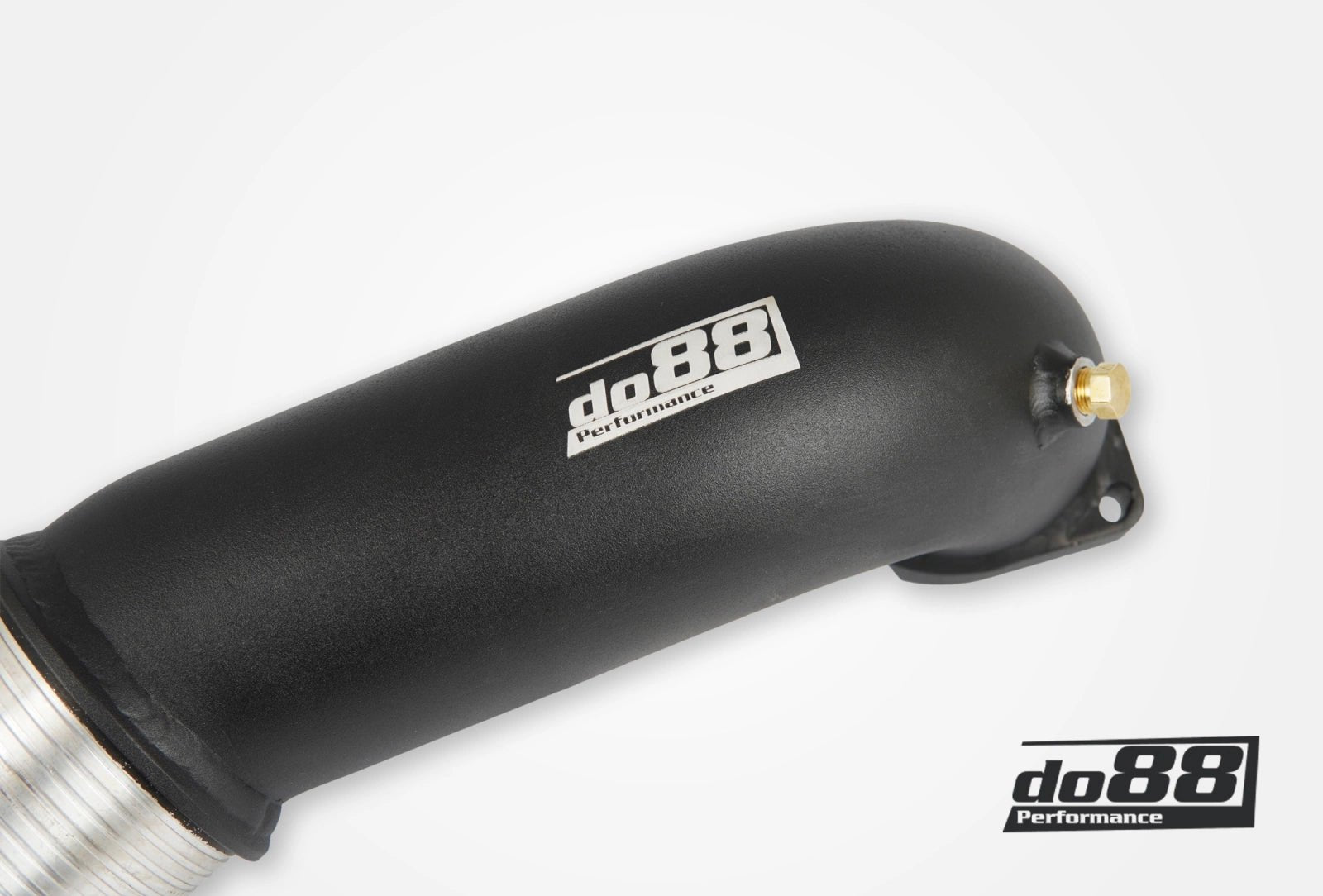

  • CNC machined MAP sensor boss, turbo and throttle body connections.
  • Two 1/8 NPT plugs are included if you don't use the ports.
  • Mandrel-bent 60mm (2 3/8”) and 76mm (3”) charge pipes coated in a stylish black powder coat.

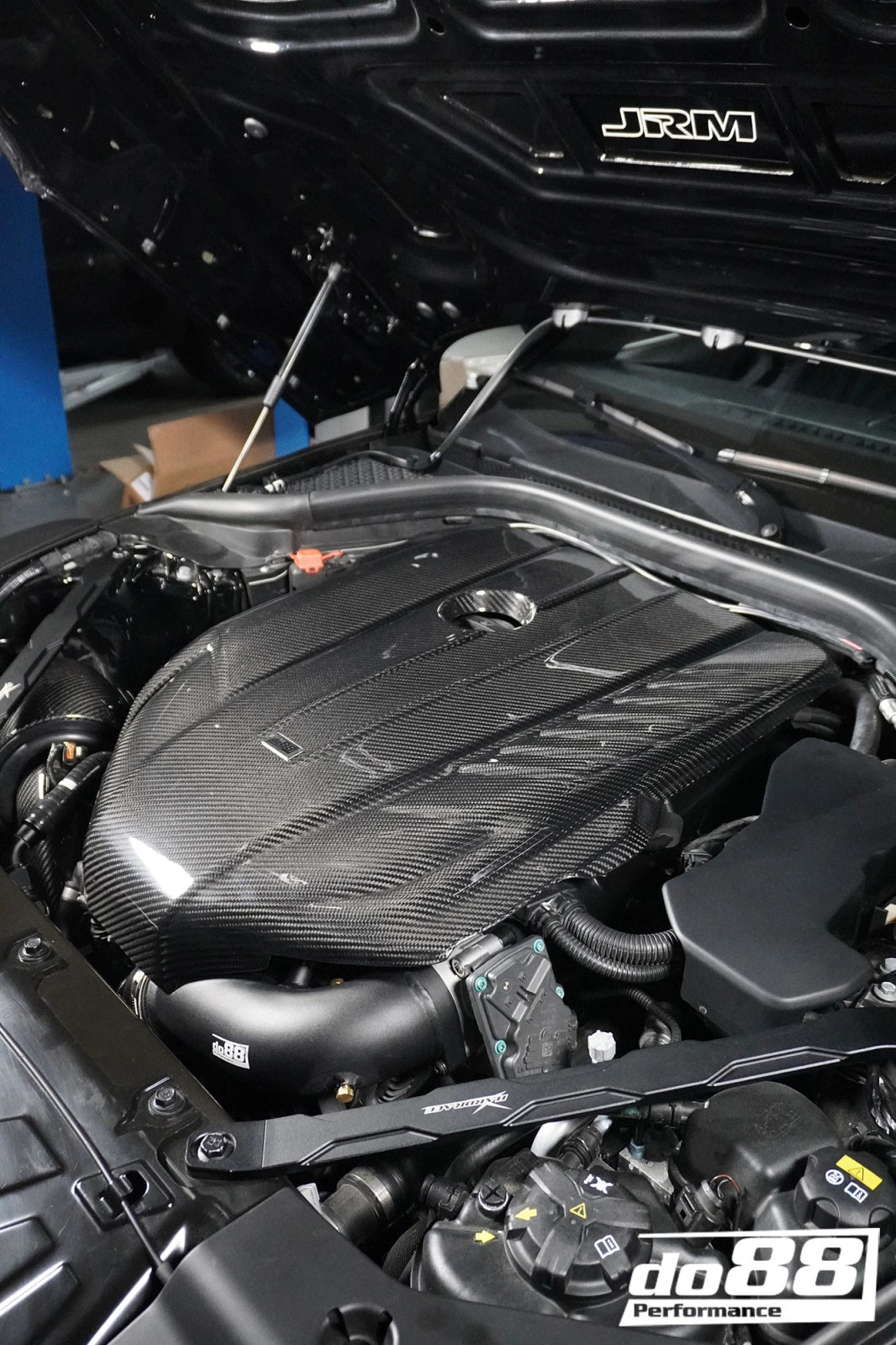

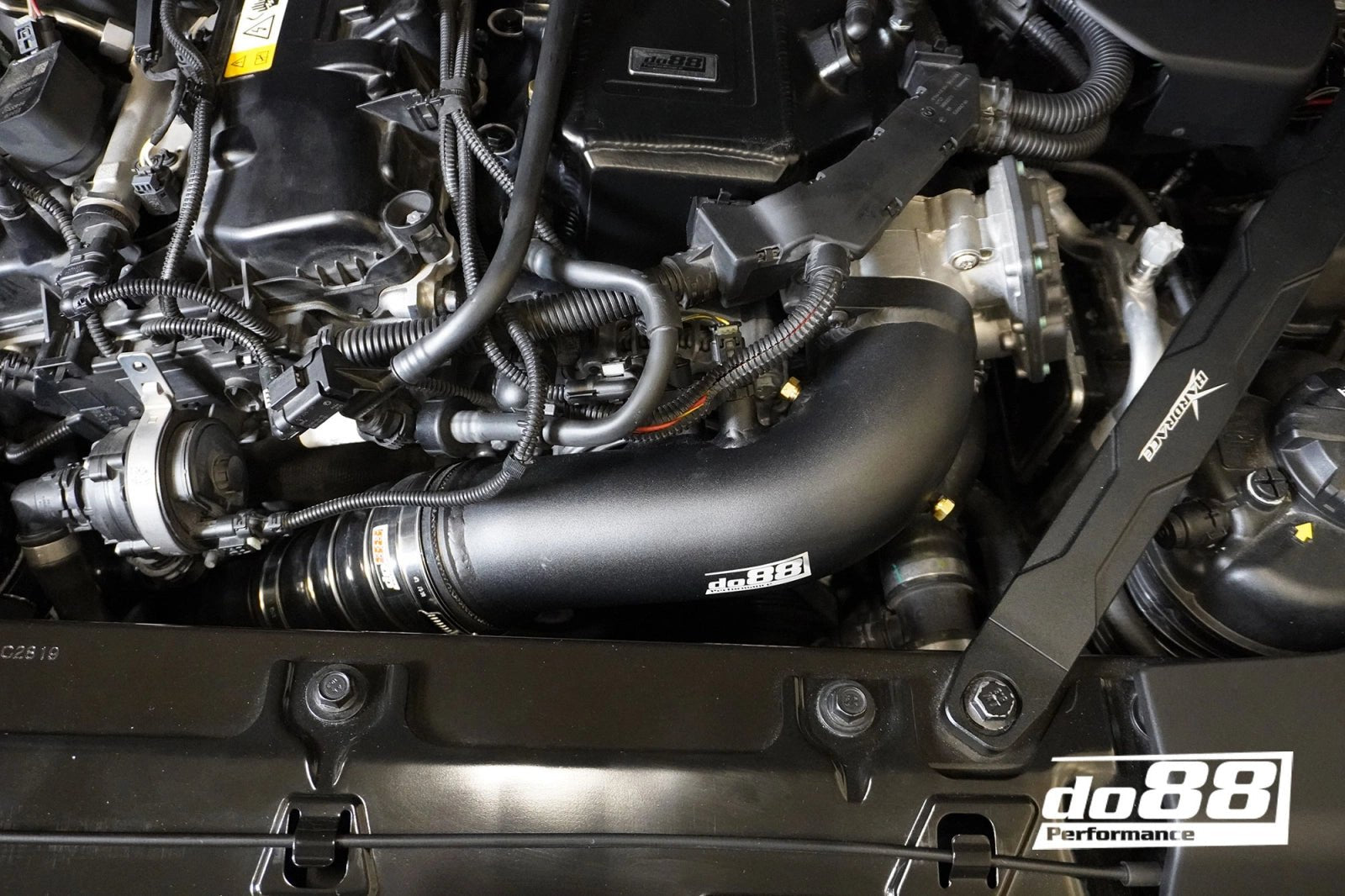

  • Does not interfere with the engine cover.
  • Manufacturer reference: DO88TR-390-GX
  • Original-equipment reference numbers: 13718651066. Reference numbers identify the replaced application, not additional supplied parts.

Vehicle Compatibility

  • BMW 2' M240i M240iX (G42) - Engine: B58 Gen 2 - Model years: 2021
  • BMW 3' M340i M340iX (G20 G21) - Engine: B58 Gen 2 - Model years: 2018
  • BMW 4' M440i M440iX (G22 G23 G26) - Engine: B58 Gen 2 - Model years: 2021
  • BMW 5' 540i 540iX (G30 G31) - Engine: B58 Gen 2 - Model years: 2018
  • BMW 6' 640i 640iX (G32) - Engine: B58 Gen 2 - Model years: 2018
  • BMW 7' 740i 745e (G11 G12) - Engine: B58 Gen 2 - Model years: 2018
  • BMW 8' 840i 840iX (G11 G12) - Engine: B58 Gen 2 - Model years: 2018
  • BMW X3 M40iX (G01) - Engine: B58 Gen 2 - Model years: 2018
  • BMW X4 M40iX (G02) - Engine: B58 Gen 2 - Model years: 2018
  • BMW X5 40iX (G05) - Engine: B58 Gen 2 - Model years: 2017
  • BMW X6 40iX (G06) - Engine: B58 Gen 2 - Model years: 2018
  • BMW X7 40iX (G07) - Engine: B58 Gen 2 - Model years: 2017

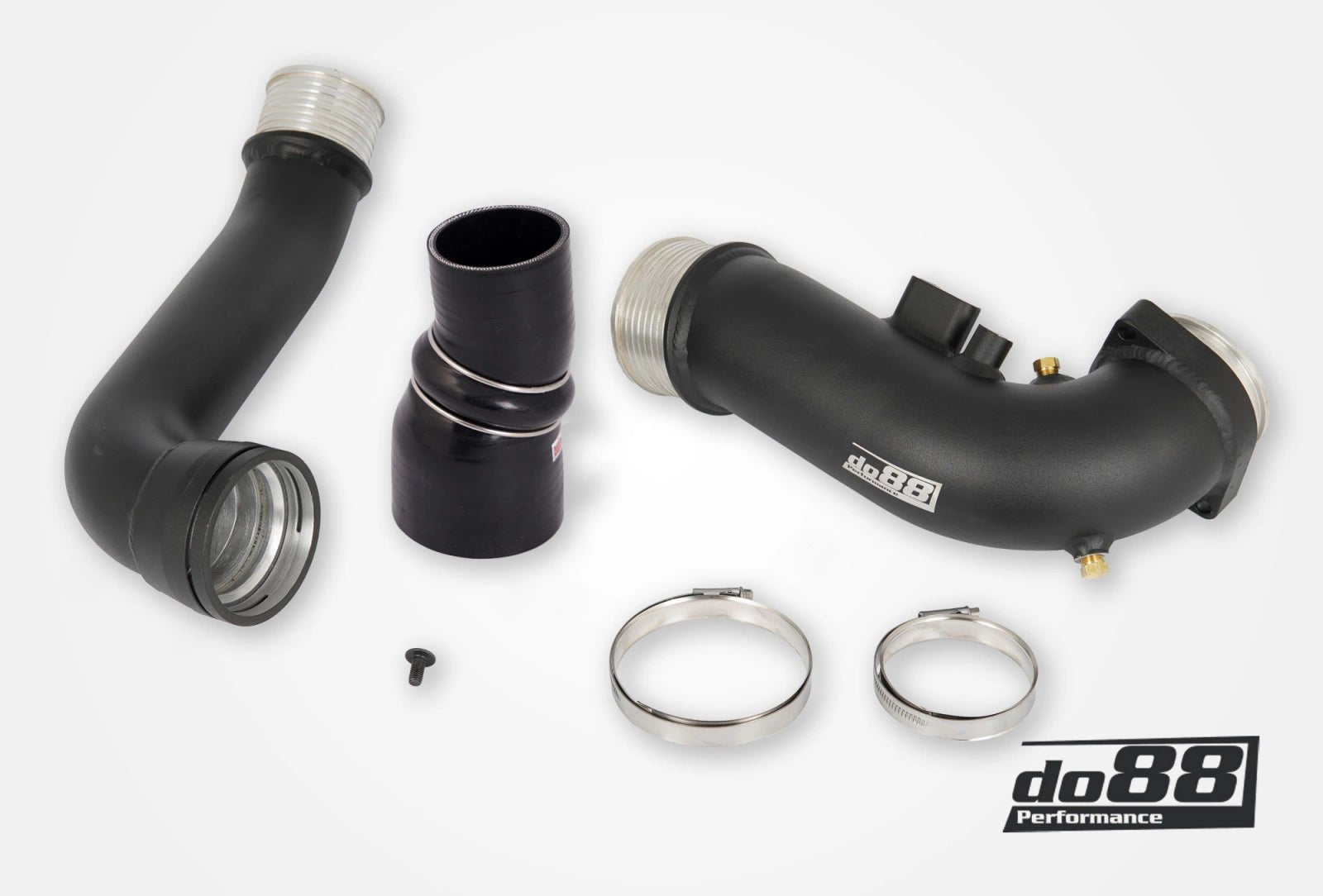

What's Included

  • do88 Performance Charge Pipe BMW G Series B58 Gen 2 - main component or selected kit.
  • Super high quality hose clamps from Mikalor included.
  • Two 1/8 NPT plugs are included if you don't use the ports.
  • Includes all hardware and instructions for complete installation
