MOTON 1-Way Club Racer Coilovers – BMW E82 1M & E9X M3
Product Description

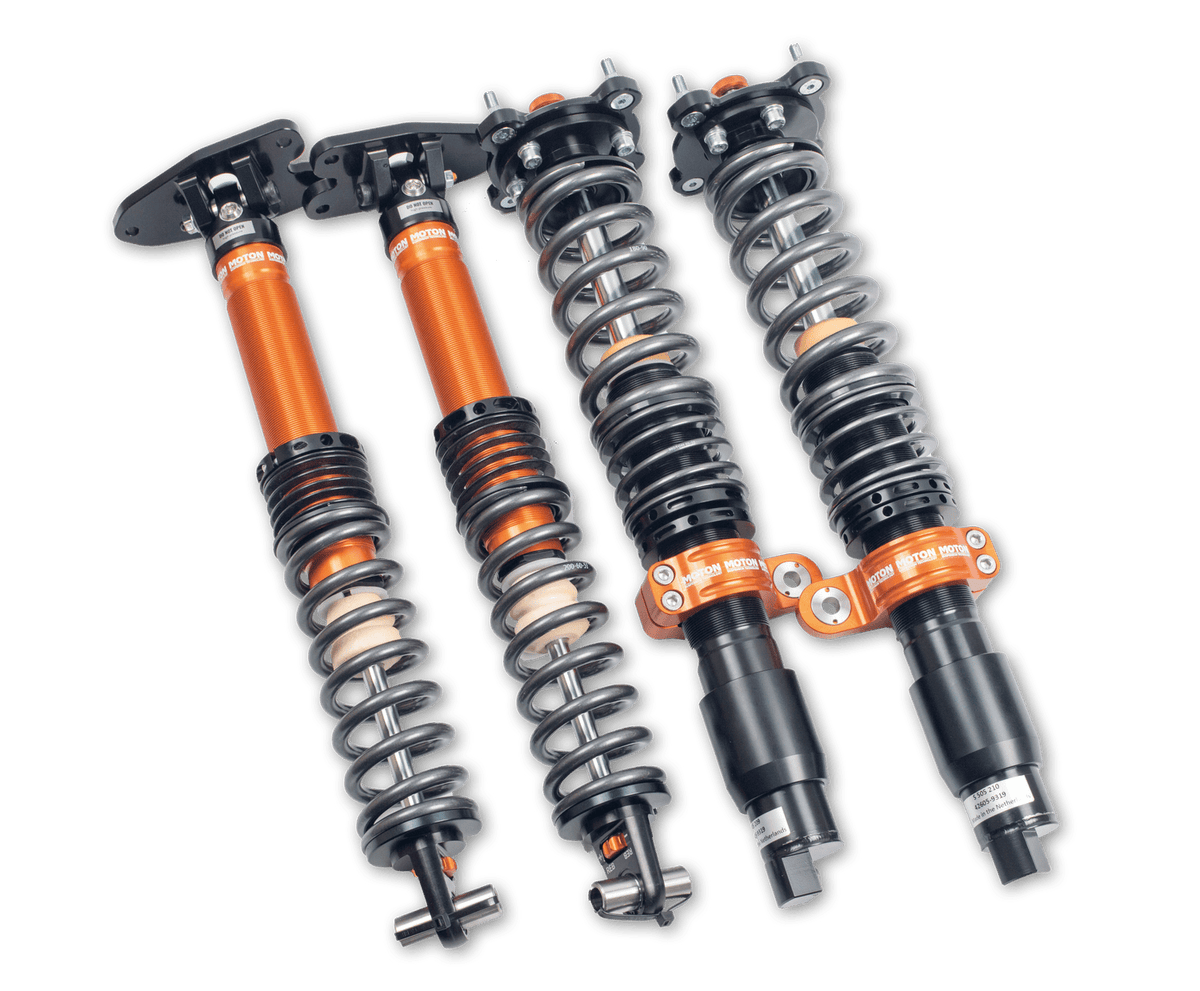

MOTON 1-Way Club Racer coilovers for the BMW E82 1M and E9X M3 combine adjustable ride height with single-adjustable rebound damping. The kit uses MOTON's non-inverted monotube construction, providing a manually adjustable suspension system without introducing separate low-speed and high-speed compression controls.
Damper design & adjustment: Rebound adjustment changes the resistance as the damper extends after compression. It allows the return movement of the suspension to be tuned while the spring specification remains unchanged. Ride height is established separately through the spring platforms, so damper adjustment and lowering should be treated as different parts of the setup.
Mounting, supplied equipment & servicing: Springs are supplied with the kit. MOTON specifies camber-adjustable front top mounts and rear top mounts according to application. The front camber adjustment acts at the upper strut mounting and forms part of the wheel-alignment setup; it is not a second damping control. Drop links are included with part number M 505 168SD. The dampers are rebuildable, allowing servicing during their working life. The final setup should take account of the car's wheel and tyre specification, installed ride height and intended use. Wheel clearance must be checked through steering and suspension movement rather than assumed from chassis fitment alone.
Installation & setup: For cars fitted with factory Electronic Damper Control, Clubsport Garage recommends coding out EDC when fitting non-electronic coilovers, where supported. A compatible KW EDC cancellation kit provides a separately available hardware alternative. The MOTON dampers remain manually adjusted rather than retaining factory electronic control. Installation should include ride-height and alignment setup before the rebound settings are refined.

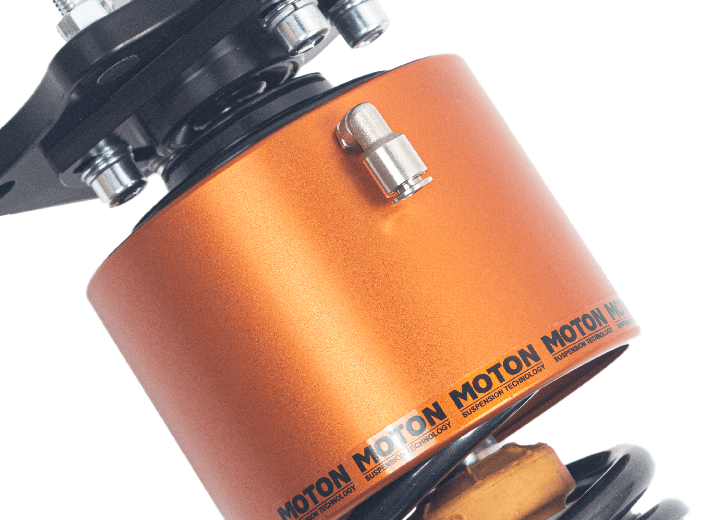

Optional MOTON Air Cup Lift System: MOTON specifies approximately 40mm of temporary front-end lift for compatible installations. The clearance achieved can vary with the vehicle and suspension setup. Select With Air Cup to include the MOTON Pneumatic Air Cup Lift System (part number 90AC-061-A3-022ST) with your selected coilovers. Suitable for MOTON suspension with 22mm damper shafts; confirm installation clearance before ordering. Select Without Air Cup for the coilovers only.
Further information below.
Key Features
Vehicle Compatibility
What's Included
FAQs
