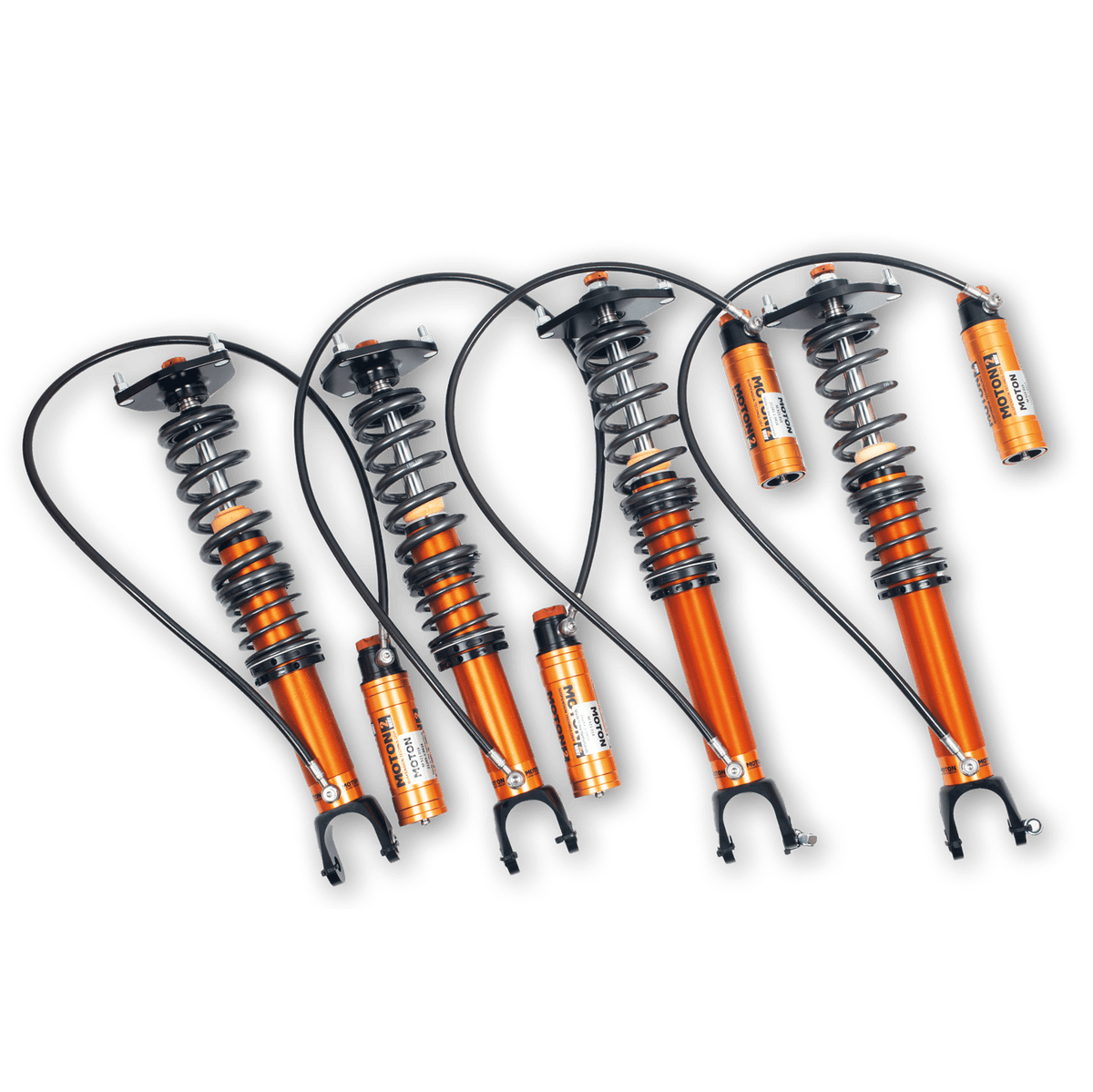

MOTON 2-Way Coilovers – BMW F2X/F3X M135i, M140i, 335i & 340i
Product Description
MOTON 2-Way coilovers for the listed BMW F2X/F3X M135i, M140i, 335i and 340i rear-wheel-drive applications combine adjustable ride height with independent rebound and compression controls. External-reservoir configurations are offered for three-bolt pre-LCI and five-bolt LCI mounting applications.
Damper design & adjustment: The non-inverted monotube dampers separate resistance during extension from resistance during compression. On the external-reservoir systems, compression is adjusted at the reservoir, independently of rebound.
Configuration & supplied equipment: External-reservoir kits are offered with either separate rear springs and dampers or true rear coilovers. A true rear coilover carries the spring on the rear damper; the separate-spring version keeps those components in their separate positions. Both use front coilovers. The rear layout should therefore be selected for the intended installation rather than interpreted as another damping setting. Springs and camber-adjustable front top mounts are supplied, with rear mount provision determined by application. Match the three-bolt or five-bolt fixing to the vehicle. The dampers are rebuildable. Drop links and front quick-disconnect couplings are included with the external-reservoir kits. Reservoir mounting brackets are optional accessories, and hose routing must remain clear throughout steering and suspension movement.
Installation & setup: For factory Electronic Damper Control applications, Clubsport Garage recommends coding out EDC when fitting non-electronic coilovers, where supported. A compatible KW EDC cancellation kit is a separately available hardware alternative. Final ride height, alignment and wheel clearance should be checked as part of the installation; factory electronic adjustment is not retained by the replacement dampers.

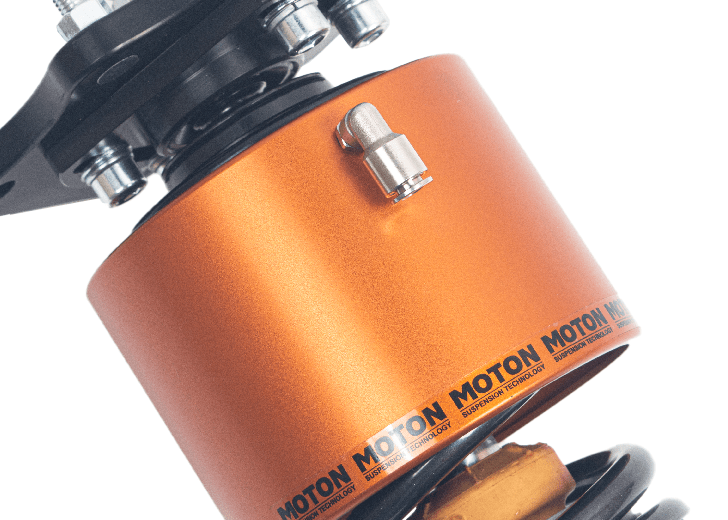

Optional MOTON Air Cup Lift System: MOTON specifies approximately 40mm of temporary front-end lift for compatible installations. The clearance achieved can vary with the vehicle and suspension setup. Select With Air Cup to include the MOTON Pneumatic Air Cup Lift System (part number 90AC-061-A3-022ST) with your selected coilovers. Suitable for MOTON suspension with 22mm damper shafts; confirm installation clearance before ordering. Select Without Air Cup for the coilovers only.
Further information below.
