MOTON 3-Way Coilovers – BMW F80 M3, F82 M4 & F83 M4
Product Description

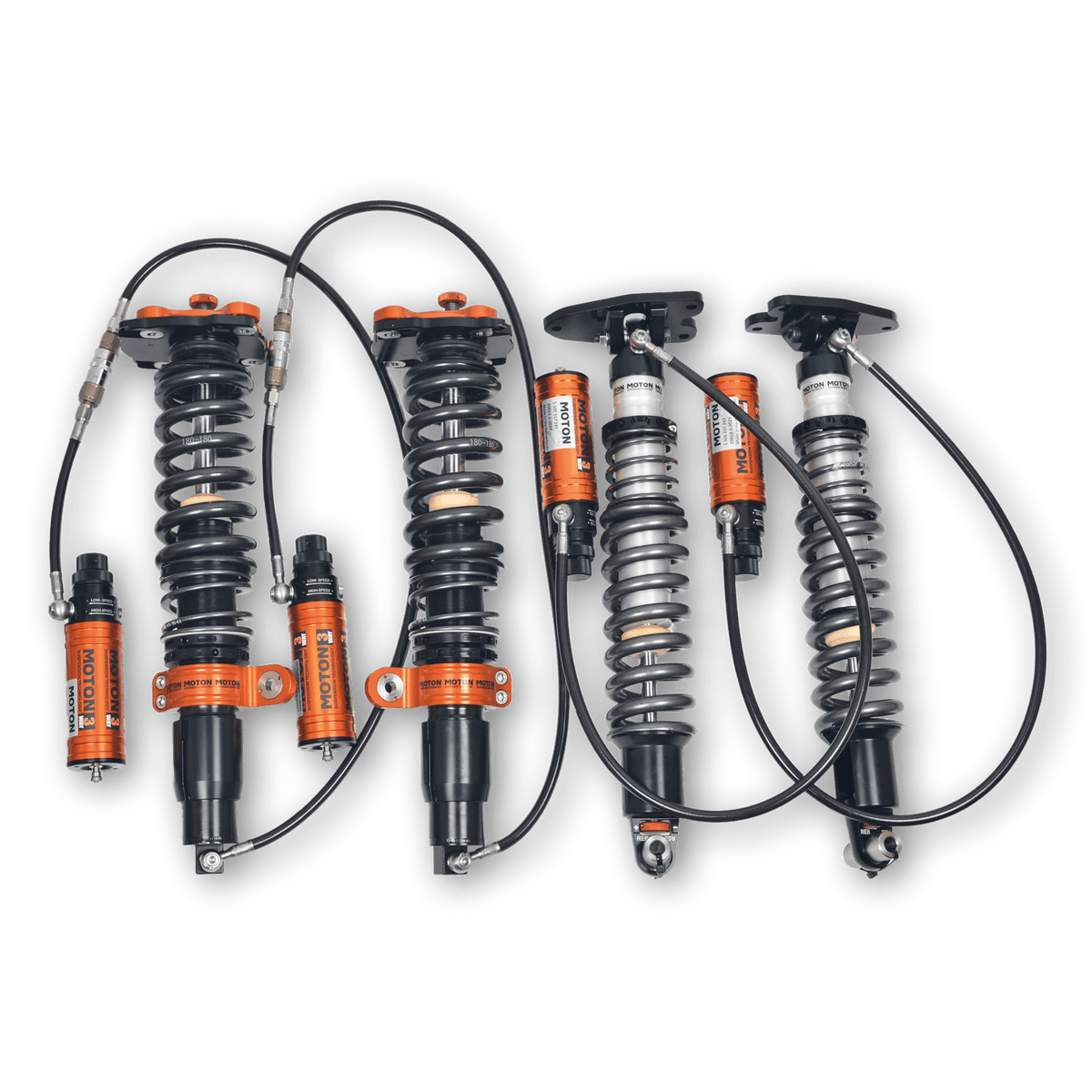

MOTON 3-Way coilovers for the BMW F80 M3, F82 M4 and F83 M4 combine adjustable ride height with separate rebound, low-speed compression and high-speed compression controls. The external-reservoir range includes different rear layouts and front mounting applications, so the selected kit must match both the car and the intended installation.

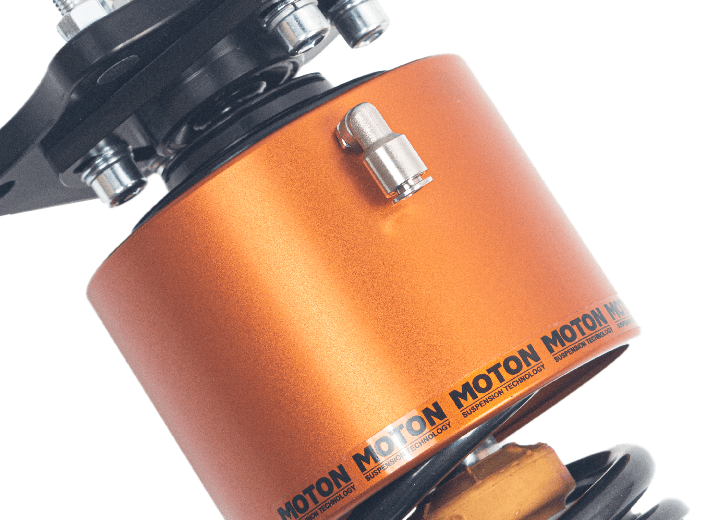

Damper design & adjustment: The non-inverted monotube dampers use remote reservoirs carrying separate low-speed and high-speed compression adjustments. These refer to damper velocity rather than road speed. Rebound governs resistance as the damper extends after compression and is adjusted independently. Ride height is established through the spring platforms and should be considered alongside alignment and available suspension travel.
Configuration & supplied equipment: The Separate Spring & Damper option, M 505 128SD, is listed for the pre-LCI F80 M3 and F82 M4 applications. It retains separate rear springs and dampers. The Rear Coilover versions carry the rear springs on the dampers, with three-bolt and five-bolt front mounting versions selected to match the relevant application. The broader product title must not be used to substitute one kit for another. Springs and camber-adjustable front top mounts are supplied, with rear mount provision according to application. Drop links are included. The dampers are rebuildable, while reservoir mounting brackets are optional accessories. Reservoir hoses require clearance throughout steering and suspension movement.
Installation & setup: For cars fitted with factory Electronic Damper Control, Clubsport Garage recommends coding out EDC when fitting non-electronic coilovers, where supported. A compatible KW EDC cancellation kit is a separately available hardware alternative. The dampers remain manually adjusted. Installation should include ride-height, alignment and wheel-clearance checks before the damping settings are refined.
Optional MOTON Air Cup Lift System: MOTON specifies approximately 40mm of temporary front-end lift for compatible installations. The clearance achieved can vary with the vehicle and suspension setup. Select With Air Cup to include the MOTON Pneumatic Air Cup Lift System (part number 90AC-061-A3-022ST) with your selected coilovers. Suitable for MOTON suspension with 22mm damper shafts; confirm installation clearance before ordering. Select Without Air Cup for the coilovers only.
Further information below.
