MOTON 3-Way Coilovers – BMW F87 M2
Product Description

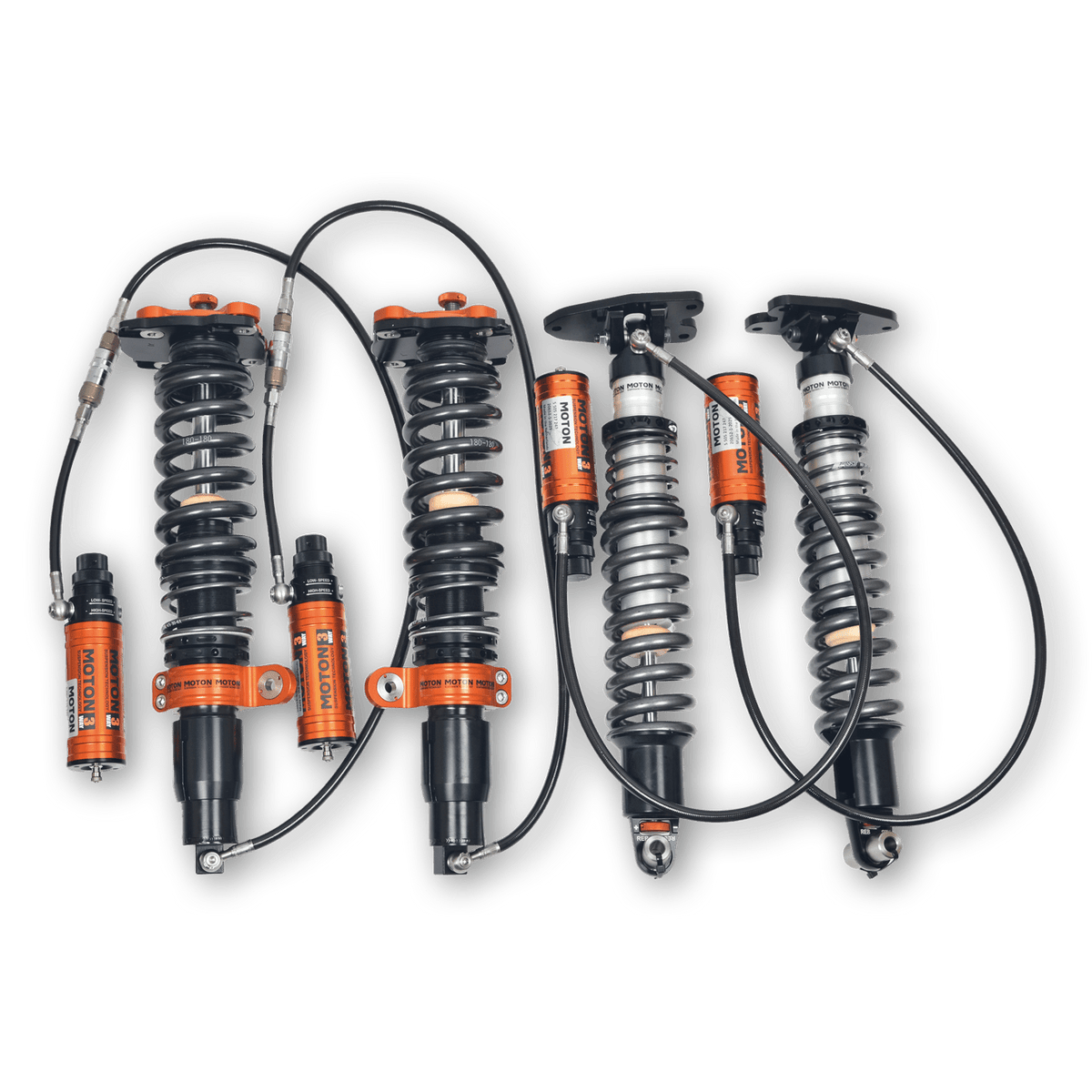

MOTON 3-Way coilovers for the BMW F87 M2 combine adjustable ride height with independent rebound, low-speed compression and high-speed compression adjustment. This listing supplies part number M 505 167SD for the standard M2, with front and true rear coilovers and external reservoirs.
Damper design & adjustment: The non-inverted monotube dampers use remote reservoirs carrying the separate low-speed and high-speed compression controls. The distinction refers to damper movement, not road speed. Rebound is adjusted separately and governs resistance as the suspension returns to extension after compression. The three controls give separate ways to develop the damping response rather than simply increasing overall firmness.
Configuration & supplied equipment: The rear springs are mounted on the rear dampers in a true coilover arrangement, rather than retained separately in the suspension. This physical layout is fixed for the kit offered here, so there is no additional configuration selector. Springs are supplied, with camber-adjustable front top mounts and the application-specific mounting equipment. Drop links are included. The dampers are rebuildable for servicing during their working life. External reservoirs require secure mounting and hose routing that accommodates steering and suspension travel without rubbing or trapping a hose. Reservoir mounting brackets are optional accessories and should be chosen to suit the installation.
Installation & setup: This product is not presented as an M2 Competition or CS kit. Ride height, alignment and wheel clearance should be checked as part of installation. Where a vehicle has factory Electronic Damper Control, Clubsport Garage recommends coding out EDC for non-electronic coilovers where supported; a compatible KW EDC cancellation kit is a separately available hardware alternative. The replacement dampers remain manually adjusted.
Optional MOTON Air Cup Lift System: MOTON specifies approximately 40mm of temporary front-end lift for compatible installations. The clearance achieved can vary with the vehicle and suspension setup. Select With Air Cup to include the MOTON Pneumatic Air Cup Lift System (part number 90AC-061-A3-022ST) with your selected coilovers. Suitable for MOTON suspension with 22mm damper shafts; confirm installation clearance before ordering. Select Without Air Cup for the coilovers only.
Further information below.
