MOTON 3-Way Coilovers – BMW F87 M2 Competition & CS

Product Description

MOTON 3-Way coilovers for the BMW F87 M2 Competition and M2 CS combine adjustable ride height with independent rebound, low-speed compression and high-speed compression adjustment. MOTON part number M 505 133SD uses non-inverted monotube dampers with external reservoirs and supplied springs.

Damper design & adjustment: Rebound controls resistance as the damper returns to extension, while low-speed and high-speed compression are adjusted separately on the remote reservoirs. These terms describe damper movement, not vehicle speed. The 3-Way system is rebuildable for servicing and offers separate ride-height adjustment for installation and chassis setup.

Configuration & supplied equipment: This manufacturer part number is listed for the S55-powered F87 M2 Competition and M2 CS. The standard N55 M2 uses a different MOTON 3-Way part number. Springs and drop links are included as standard with this SD-ending kit. Reservoir mounting brackets are optional accessories, available separately. Where top mounts are not explicitly included for the application, the original OEM top mounts must be reused; any replacement OEM mounts and hardware should be identified by the vehicle VIN. Reservoirs need secure mounting and hose clearance throughout suspension and steering movement.

Quick disconnect couplings: The current supplier application list does not state that front or rear quick disconnects are supplied as standard for this part number. Dry-break configurations and their prices remain unconfirmed, so they are not offered as selectable upgrades. Please contact Clubsport Garage if quick disconnects are required.

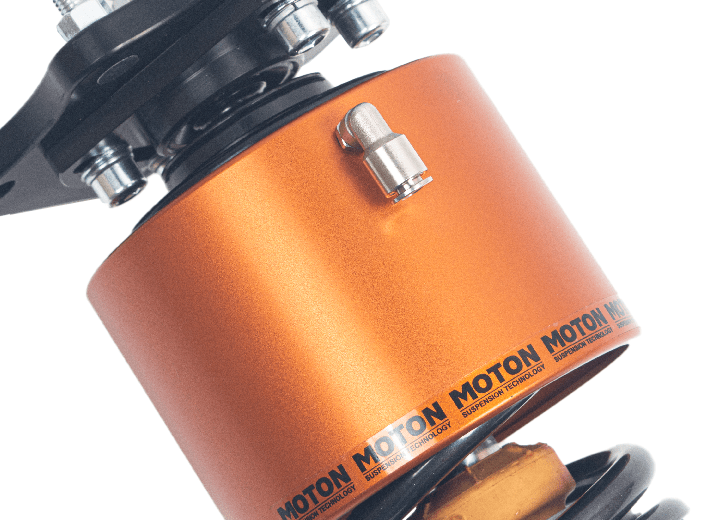

Optional MOTON Air Cup Lift System: MOTON specifies approximately 40mm of temporary front-end lift for compatible installations. The clearance achieved can vary with the vehicle and suspension setup. Select With Air Cup to add the MOTON Pneumatic Air Cup Lift System (90AC-061-A3-022ST) to the coilover kit. It requires compatible MOTON suspension with 22mm damper shafts; shaft diameter, installation clearance and pneumatic installation must be checked before ordering. Choose Without Air Cup for the coilovers only.

Further information below.

Key Features

Non-inverted, rebuildable monotube damper construction.
External reservoirs with separately adjustable low-speed and high-speed compression.
Independent rebound adjustment.
Adjustable ride height and supplied coil springs.
MOTON manufacturer part number M 505 133SD for the BMW F87 M2 Competition and M2 CS.
Optional 22mm-shaft MOTON pneumatic Air Cup lift system supplied only when selected.
Drop links supplied as standard with MOTON M 505 133SD.
Reservoir mounting brackets are optional accessories.

Vehicle Compatibility

BMW F87 M2 Competition (S55).
BMW F87 M2 CS (S55).
Not the standard BMW F87 M2 with N55 engine, which uses a different MOTON 3-Way kit.

What's Included

MOTON 3-Way suspension kit, manufacturer part number M 505 133SD.
Non-inverted monotube front and rear dampers with remote reservoirs.
Manufacturer-supplied coil springs.
MOTON Pneumatic Air Cup Lift System (90AC-061-A3-022ST) only with the With Air Cup selection.
Drop links, included with this SD-ending kit.
Top mounts only where specifically supplied for the application; otherwise retain the original OEM mounts.

FAQs

What does three-way adjustment control?

Rebound damping and two separate compression ranges (low-speed and high-speed damper movement). Compression is adjusted at the external reservoirs.

Does this fit the standard N55 BMW F87 M2?

No. This manufacturer part number is listed for the M2 Competition and M2 CS; the standard N55 M2 has a different MOTON 3-Way part number.

Are quick disconnect couplings included?

The current supplier application list does not specify them for M 505 133SD. Front/rear quick disconnect and dry-break availability must be confirmed before ordering.

Can I add the MOTON pneumatic Air Cup lift?

Yes, using the With Air Cup option when the suspension has compatible 22mm damper shafts and there is sufficient installation clearance.

Are drop links and reservoir mounting brackets included?

Drop links are supplied as standard with MOTON M 505 133SD. Reservoir mounting brackets are optional accessories.

Do I need replacement top mounts?

Use the included top mounts only where explicitly listed for this application. Otherwise, the original OEM top mounts must be retained; any new OEM mounts or mounting hardware should be sourced using the vehicle VIN.
