MOTON 3-Way Coilovers – BMW G8X M2, M3 & M4
Product Description

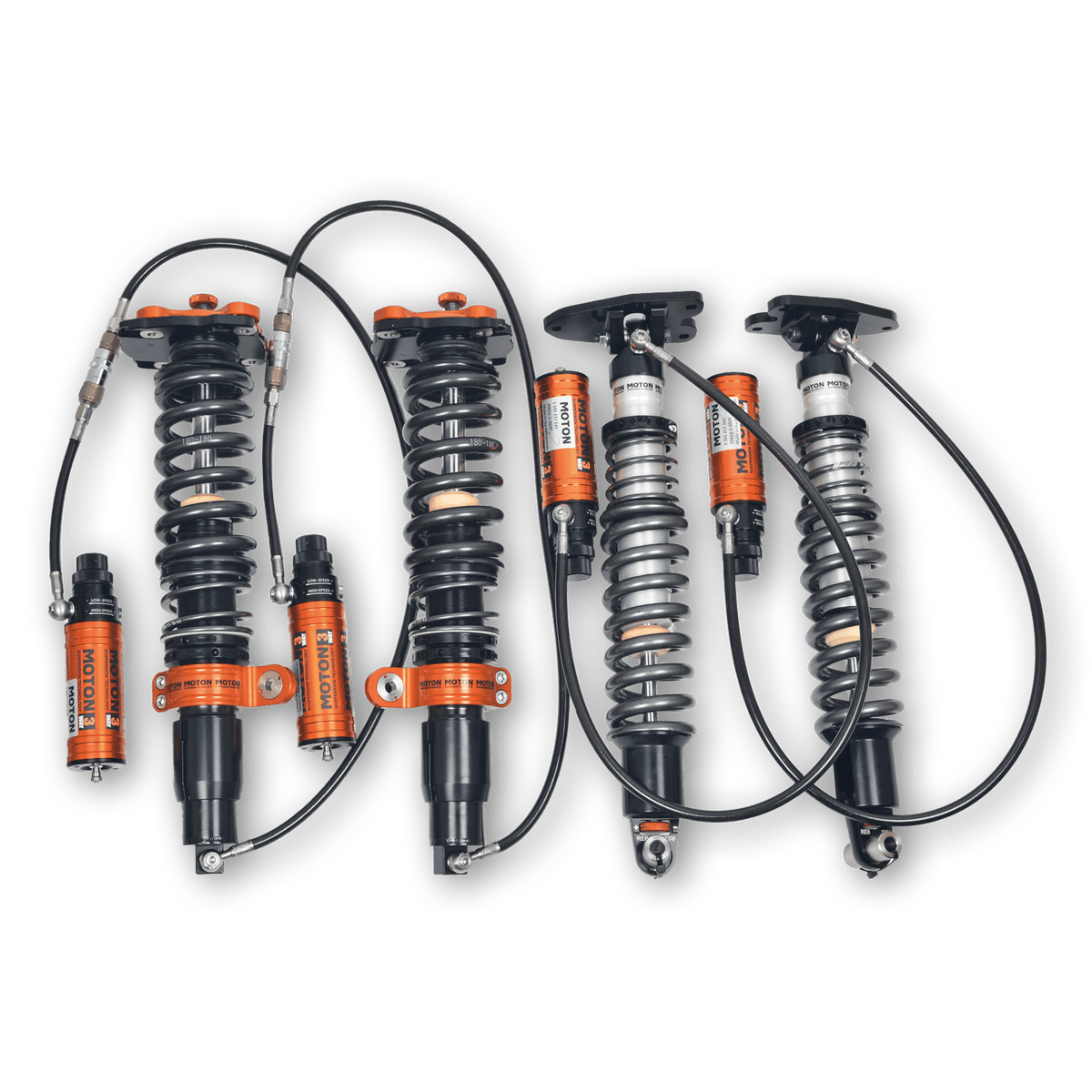

MOTON 3-Way coilovers for the BMW G8X M2, M3 and M4 combine adjustable ride height with independent rebound, low-speed compression and high-speed compression adjustment. Both drivetrain versions use external reservoirs and front and true rear coilovers, so the relevant product choice is rear-wheel drive or xDrive.
Damper design & adjustment: The non-inverted monotube dampers use remote reservoirs with separate low-speed and high-speed compression controls. These terms describe damper movement rather than the road speed of the car. Rebound is adjusted independently and governs resistance as the damper returns to extension after compression. The three-way arrangement allows different aspects of the suspension response to be developed separately.
Configuration & supplied equipment: The rear springs sit on the rear dampers in a true coilover arrangement, rather than being mounted separately in the suspension. Springs are supplied with the system, together with camber-adjustable front top mounts and application-specific mounting equipment. Drop links are included with both drivetrain versions. The dampers are rebuildable for servicing during their working life. The xDrive kit, M 505 189SD, includes front quick-disconnect couplings. Reservoir mounting brackets are optional accessories. Reservoir position and hose routing should be planned to provide secure mounting, adjuster access and adequate clearance throughout steering and suspension movement. Couplings should be handled according to the manufacturer's installation guidance.
Installation & setup: For cars fitted with factory Electronic Damper Control, Clubsport Garage recommends coding out EDC when fitting non-electronic coilovers, where supported. A compatible KW EDC cancellation kit is a separately available hardware alternative. The replacement dampers do not retain electronic adjustment. Final ride height, alignment and wheel clearance should be established together before refining the damping settings.

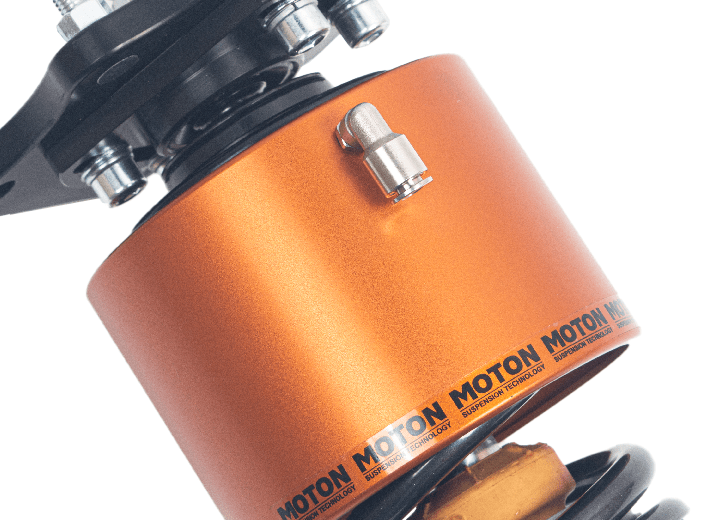

Optional MOTON Air Cup Lift System: MOTON specifies approximately 40mm of temporary front-end lift for compatible installations. The clearance achieved can vary with the vehicle and suspension setup. Select With Air Cup to include the MOTON Pneumatic Air Cup Lift System (part number 90AC-061-A3-022ST) with your selected coilovers. Suitable for MOTON suspension with 22mm damper shafts; confirm installation clearance before ordering. Select Without Air Cup for the coilovers only.
Further information below.
