Nitron NTR R3 Coilovers – BMW F87 M2 (2016–2018)

From £5,788.80

Ultimate Suspension Control for Road and Track

The Nitron NTR R3 Coilover Kit is a motorsport-developed suspension system for those seeking uncompromising control, feedback, and adjustability from their M2.

Compatibility:
This kit is designed specifically for the BMW F87 M2 (non-Competition model) produced from 2016–2018

The R3 offers 3-way independent damping adjustment – rebound, fast compression, and slow compression – giving you full command over chassis behaviour, grip, and ride quality.


Key Features of the Nitron NTR R3 Kit

  • 3-way independent damping adjustment

  • Separate rebound, fast compression, and slow compression control

  • Remote or piggyback reservoir layout

  • Large-diameter piston for fade-free consistency

  • True or Divorced rear spring configuration

  • Compatibility: BMW F87 M2 (2016–2018)

  • Bi-Axis hose fittings on remote reservoir kits

  • Fully serviceable and rebuildable

  • Titanium and hard-anodised components

  • Hand-built to order in the UK


Spring Rate Options – Tuned by Nitron for the BMW F87 M2

Nitron’s recommended spring rates for the original F87 M2 have been carefully selected to offer superb control, stability, and predictability for both road and track use.

Fast Road Setup

Tuned for spirited road driving with the capability for occasional trackdays.

  • Front: 120 N/mm

  • Rear (Divorced): 130 N/mm

  • Rear (True Coilover): 70 N/mm

Track Setup

Stiffer spring rates for track and high-performance builds, offering increased grip and reduced roll under load.

  • Front: 140 N/mm

  • Rear (Divorced): 160 N/mm

  • Rear (True Coilover): 90 N/mm

    True rear spring rates appear lower due to different mounting ratios and spring positions – overall stiffness is comparable.


Custom Options Available

Custom spring rates, spring lengths, and damper lengths are available on request. Contact us before ordering to tailor the kit to your specific build.


Optional Quick-Connect Dry Break Fittings (+£895)

Upgrade to quick-connect dry break fittings for the remote reservoirs to allow relocation inside the vehicle (e.g. cabin or engine bay) without fluid loss.

Benefits include:

  • Easier and faster access for damping adjustments

  • Protection from heat, dirt, and road debris

  • Cleaner, motorsport-style installation

  • Improved thermal performance by isolating reservoirs from heat sources

    Highly recommended for race cars or serious trackday builds. Contact us prior to ordering to include this option in your kit.


Race-Grade Construction and Materials

Nitron’s high-performance monotube design, large pistons, and precision internals ensure consistent, fade-free damping under extreme load.

All components are manufactured from lightweight, corrosion-resistant materials with hard-anodised and titanium finishes, making them ideal for year-round use or endurance events.

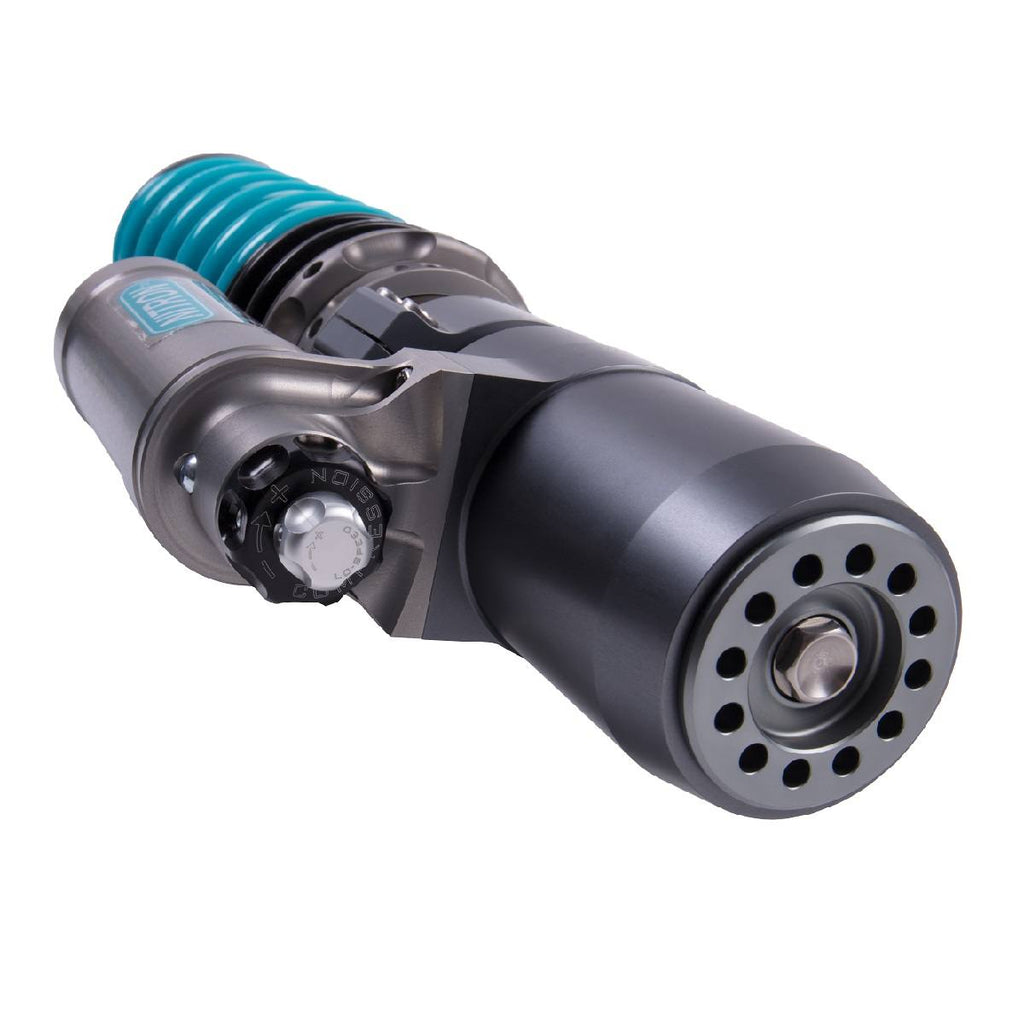

Bi-Axis Hose Fittings (Remote Reservoir Kits Only)

Nitron’s patented Bi-Axis hose fittings allow flexible mounting of remote reservoirs – perfect for tight or complex installations. They also simplify setup and ensure long-term reliability.


Built to Order – Customised for Your Build

Each Nitron NTR R3 kit is hand-assembled to your spec at Nitron’s UK facility. Standard lead time is 2–3 weeks. For an accurate ETA, contact us directly and we’ll check with Nitron.


Why Buy from Clubsport Garage?

We’re an authorised Nitron dealer with deep knowledge of the F87 M2 chassis and suspension dynamics. We don’t just supply the parts – we help you get the best from them.

  • Real-world M2 fitment expertise

  • Fast, insured UK and worldwide shipping

  • Honest, expert setup advice

  • Trusted by trackday drivers, club racers, and enthusiasts alike

Not sure what spec you need? Drop us a message – we’re happy to help.
